| Max Flow(m³ /h): | 175 | Vacuum (kpa): | 18 |
|---|---|---|---|
| Voltage (V): | 3¢*380 | advantage: | High Output |
| application: | Pharmaceutical Industries | Feature: | Spiral air pump |
| Material: | Stainless steel | other: | steam turbine impeller |
| Làm nổi bật: | industrial vacuum cleaners for dust |
||

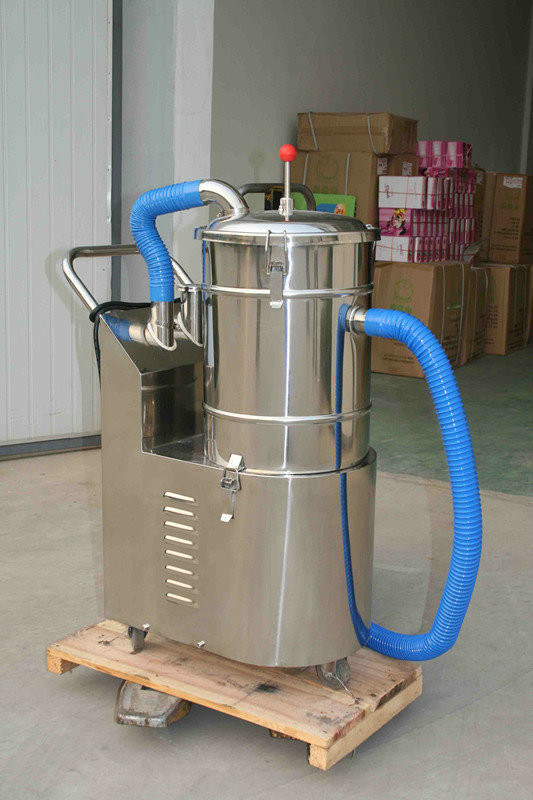

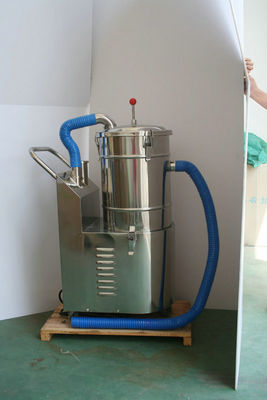

High-Efficiency Industrial Vacuum Cleaner With Spiral Air Pump In Dust Suction
Description:
XGB series high-efficiency industrial vacuum cleaners are designed to meet continuous dust suction demands for industrial applications. It incorporates almost all the advantages of various industrial vacuum cleaners. Spiral air pump is adopted, which resembles a large steam turbine impeller. When the impellers of spiral air pump rotates , the air in between the impeller vanes , move towards the edge of the impellers under centrifugal force , from where the air enters the annular space of the pump , and then the air return to the impellers , restart the same type of air circulation from the impellers . Since the air is accelerated evenly , the circulation air flow generated from the impellor come out in spiral form , the air emit from the air pump with high power ( the pressure generated is 120 to 170 times higher than centrifugal machine of same rotation speed and same diameter) . With flexible and convenient operation characteristics, as well as reliable performance, the machine is widely used in dust suction applications of large areas, such as pharmaceutical, chemical and foodstuff industries.
Applications:
1, industrial vacuum cleaners
2, used in dust suction applications of large areas
Specifications:
|
Model |
XGB-150 |
|
Voltage (V) |
3¢*380 |
|
Power(w) |
1500 |
|
Max Flow(m³ /h) |
175 |
|
Max Pressure(kpa) |
<13 |
|
Vacuum (kpa) |
18 |
|
Overall Size(mm) |
700*450*1200 |
|
Weight(kg) |
55 |
Competitive Advantage:
