Portable mine drilling rig machine for rock hardness with two independent gear pump

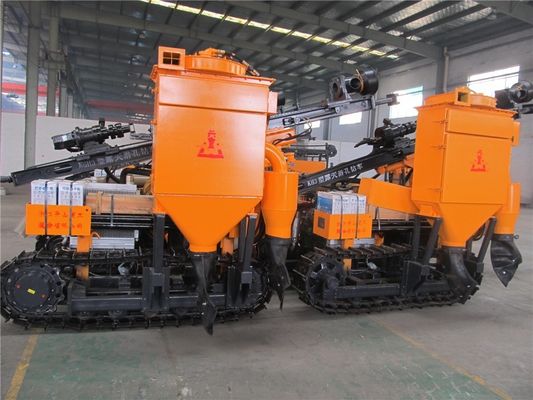

Large Image : Portable mine drilling rig machine for rock hardness with two independent gear pump

Product Details:

Place of Origin:	ZHEJIANG CHINA
Brand Name:	KAISHAN
Certification:	ISO9001
Model Number:	KGH5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden package as customer requirement
Delivery Time:	15DAYS AS GOT THE DOWN PAYMENT
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000

Contact Now

Detailed Product Description

Condition:	New	Type:	Rotary Drilling Rig
Power Type:	Diesel	Rock Hardness:	Rock Hardness
After-sales Service Provided:	Engineers Available To Service Mac
Highlight:	mine drilling rig

Mining portable crawler drilling rig with dust catcher KGH5 Dia hole:105-165mm depth:30m

Product Description

Strong and reliable power

Use two-cylinder diesel engine as power, traction power is big, strong climbing ability; the whole machine vibration is small, work smoothly.

Using patent diesel engine intake adjusting device (patent no : 2008820087606.3) plus desert air filter and oil filter triple filter perfect combination, to enhance the boring rig to adaptability the bad environment, prolong the service life of diesel engine

Flexible drill arm

Using drill arm, by controlling the oil cylinder of the flexible can adjust drilling Angle and horizontal hole’ height, enlarged the scope of drilling, improve the product adaptability.

Reliable hydraulic pump group

Using two independent gear pump supply oil, reliable work, strong adaptability, easy maintenance

Adopt gear transmission and soft features connection, compact structure, smoothly operation

Reliable hydraulic system

Using special hydraulic components, improve the stability and reliability of the system.

Add the oil cooling equipment, eliminate the influence of hydraulic oil heating to the system

KGH5 Open-air DTH drill rig technical parameters:
Rock hardness	f=6~20	Ground clearance(mm)	254
Drilling diameter(mm)	105~165	Travel speed(Km/h)	0--2.0
Economic drill depth(m)	25	Drill arm dump angle	35°~60°
Working pressure(MPa)	1.0~2.4	Drill arm swing angle	-
Capacity(m^3/min)	≥15	Carriage swing angle	-11.5°~+36.5°
Rotating speed(r/min)	0~100	Carriage elevation angle	-118.5°~+23.5°
Lifting power(KN)	25	Carriage compensation(mm)	1200
Drill specifications (mm)	89x3000	Dimension (mm)	5400x2330x2020
Gradeability	25°	Weight(Kg)	7000
Notes	hydraulic pneumatic	Motive power	YC4D80-T10(33kW 2200r/min)

Quality Control

There are more than 1000 sets of advanced automatic molding production lines, machining center, heat treatment facilities top-rate testing devices and all kinds of machining process equipments imported from the USA, UK, Japan and Germany. The Kaishan brand products have got ISO9001:2000 Quality System certificate.

Our Services

. 24 hours technical support by e-mail

. calling or door-to-door service

. use-friendly English software, user manual and detailed Videos
