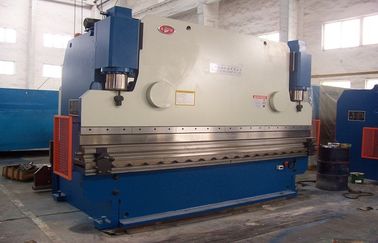

Customized High performance 250T / 4000mm Small Press Brake Machine

Customized High performance 250T / 4000mm Small Press Brake Machine
Customized High performance 250T / 4000mm Small Press Brake Machine Customized High performance 250T / 4000mm Small Press Brake Machine Customized High performance 250T / 4000mm Small Press Brake Machine Customized High performance 250T / 4000mm Small Press Brake Machine

Large Image :  Customized High performance 250T / 4000mm Small Press Brake Machine

Product Details:
Place of Origin: Wuxi-china
Brand Name: CMC
Certification: ISO9001
Model Number: WC67Y-250/4000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Metal pallet
Delivery Time: According requirement
Payment Terms: Down Payment 30% T/T ,70% T/T Before Shipping
Supply Ability: According requirement
Detailed Product Description
Highlight:

press brake equipment

Detailed Product Description:



CNC Control System:

Delem DA-41

Estun E10 E200

Jin Qiu DTC800

Function: Bending Steel Plates
Product Name: Press Brake Machine Steel Sheet Thickness: 8m
Steel Sheet Width: 4000mm Use: Metal Plates





Quick Detail:

High quality bending Press Brake Machine 250T/4000mm

1. punch force: 250KN

2. bending max steel sheet width :4000mm

3. bending max steel sheet thickness :8m





Description:



1. The steel-welded frame could make sure high strength, high rigidity and high accuracy.

2. Using of mechanical forced synchro system, both sides of sliders move in parallel by synchro axis.

3. Deflection compensation unit is installed in the upper mold,Upper mold clamping device is an option.

4. When NC press brake, X-axis backgauge is driven by servo motor ,adoapted ball-screw and linear guide way.

5. When NC press brake, ram stroke are controled by servo moto,it could make sure higher positioning accuracy.





Applications:



Press Brake Machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.



Specifications:



Main Technical Features

NO. Name Value Unit Remark
1 Working force 250 KN
2 Length of table 4000 mm
3 Distance of column 3100 mm
4 Throat depth 400 mm
5 Open height 480 mm
6 stroke 250 mm
7 Speed of ram slide block Approach 70 mm/s
Working 8 mm/s
Return 80 mm/s
8 Main motor 18.5 KW
9 Overall dimension Length 4100 mm
Width 2500 mm
Height 2960 mm
10 Weight 18000 Kg
11 Volume of oil tank 640 L













































































Competitive Advantage:



1) Our machine performance quality and chcheap, known in the industry.

2) One year guarantee.

3) Fast and high quality after-sales service.

4) We can design the machines according to customers’ special requirement.

5) We have professional team for service.



MANUFACTURER: WUXI JINQIU MACHINERY CO.,LTD
