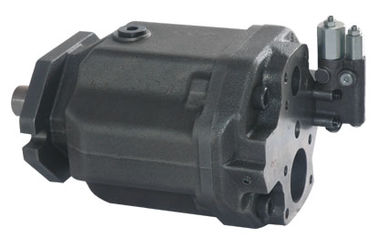

High Speed Small Volume Tandem Hydraulic Pumps for Ship System

High Speed Small Volume Tandem Hydraulic Pumps for Ship System
High Speed Small Volume Tandem Hydraulic Pumps for Ship System

Large Image :  High Speed Small Volume Tandem Hydraulic Pumps for Ship System

Product Details:
Place of Origin: China
Brand Name: Hengyuan Hydraulic
Certification: ISO9000
Model Number: A10VSO18/28/45/71/100/140
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month
Detailed Product Description
High Light:

radial piston pump

,

variable displacement axial piston pump

High Speed Small Volume Tandem Hydraulic Pumps for Ship System

Quick details

Tandem Hydraulic Pumps

displacement is 18cc/28cc/45cc

Clockwise Rotation

high speed

Low noise, SmallVolume





Features
1. Swash plate design axial variable piston pump used in open
circuit.
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
response times.
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.





Hydraulic Pumps for Ship Hydraulic System



Specifications:

Specifications:







16/18

28

45

71

100

140

Displacement



Vg  max

cm3

18

28

45

71

100

140

Max speed



nmax

rpm

3300

3000

2600

2200

2000

1800

Max. flow

in  nmax

qv

L/min

59.4

84

117

156

200

252

in 1500 r/min

27

42

68

107

150

210

Max. power (Δp=280bar)



in nmax

Pmax

Kw

27.7

39

55

73

93

118

in 1500 r/min

12.6

20

32

50

70

98

Max. torque (Δp=280bar)



in Vg  max

Tmax

Nm

80.1

125

200

316

445

623

Weight



m

Kg

12

15

21

33

45

60





Applications:

Hydraulic system. Ship Hydraulic system.



Advantage:

Good quality, Competitive price and quick delivery.

Low noise, SmallVolume

Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump
