Excavator Axial Piston Pumps Hydraulic

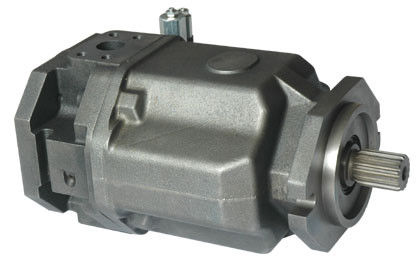

Büyük resim : Excavator Axial Piston Pumps Hydraulic

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	Hengyuan Hydraulic
Sertifika:	ISO9000
Model Number:	A10VSO18/28/45/71/100/140

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

İletişim

Detaylı ürün tanımı

Application:	Concrete pump truck, Boats hydraulic system, Excavator, Loader	Direction of rotation:	Clockwise
feature:	Low noise	Mounting flange:	SAE 2 hole
Power:	Hydraulic	Seals:	Perbunan, Viton
Structure:	Piston Pump	Type the shaft:	SAE splined, SAE parallel with key
Vurgulamak:	axial flow pump

Excavator Axial Piston Pumps Hydraulic

Quick details

OEM Flow Control Axial Piston Hydraulic Pump

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Low noise, Small Volume

Specifications:

Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.

Specifications:				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60

Applications:

Hydraulic system. Ship Hydraulic system.

Hydraulic System, Engineering machine, Concrete pump truck, Boats hydraulic system.

Excavator, Loader

Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump

Parameter

Operating pressure range	Pressure at port B
~ inlet	Nominal pressure PN----------------280bar
	Peak pressure PMAX-----------------------350bar
Absolute pressure at port S	Clearance work pressure (10% cycle)---------315bar
P abs min------------------------0.8bar	Applications with intermittent operating pressures up to
P abs max------------------------30bar	215 bar at 10% duty are permitted .

Case drain pressure

Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.

Advantage:

Good quality, Competitive price and quick delivery.

Low noise, Small Volume

Description:

Ordering Code	Detail
HA10V(S)	Model Variable pump,Swashplate design	Rated pressure 280bar	Peak pressure 350bar
O	Mode of operation Pump,Circuit
28	Displacement 18 . 28 . 45 . 71 . 100 . 140(ml/r)
DR	Two point ,direct control ,DRG--- Remote pressure control	Pressure control,Pressure and flow control	DFR1 Pressure and flow control ,Orifice in X-channel closed	Pressure . flow and torque control
/
31	Series: 31 Series
R	Direction of rotation R--- Clockwise	L--- Anti-clockwise
-
P	P-- Perbunan	Seals V-- Viton
S	Type the shaft:P--- Metric parallel with key	S-- SAE splined	K-- SAE parallel with key	U-- SAE splined,reduced dia.
C	Mounting flange:C--- SAE 2-hole	D--- SAE 4-hole	A- ISO 2-hole	B- ISO 4-hole
62	Port form:11—Back SAE, Port for SAE flage rear,fixing thread metric	service Lines 12---Both sides SAE,SAE flage on opposite side,fixing thread UNC	61--- SAE,UNC Screw thread, SAE flage rear ,fixing thread UNC	62---Both sides SAE,UNC Screw thread, SAE flage on opposite side,fixing thread UNC
NOO	Thru-form:N00- Nowhere shaft	without through drive	K**--- Thru	with through drive
