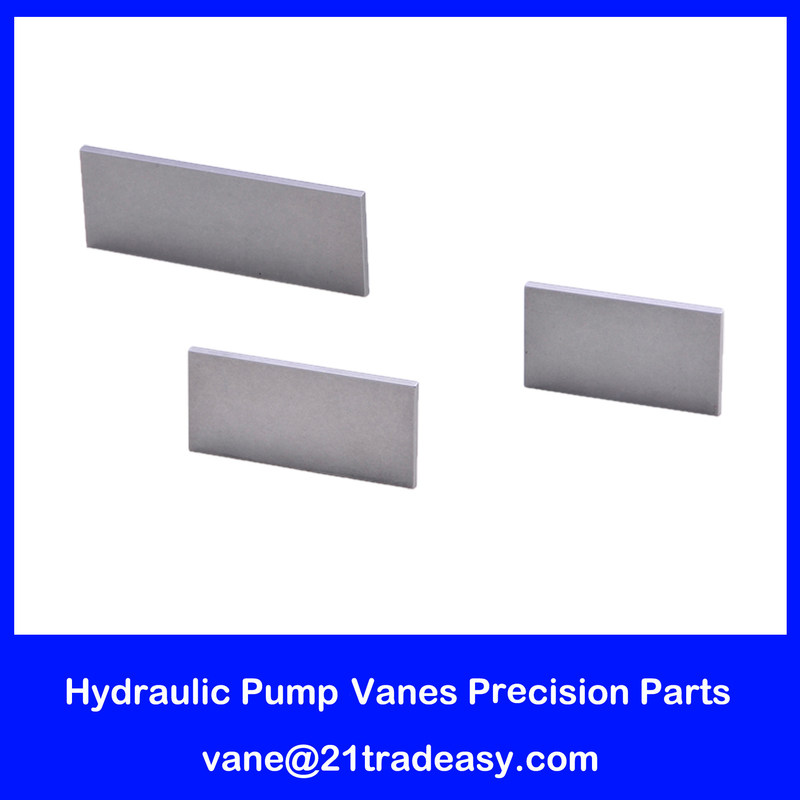

Hydraulic Vane Pump Vanes

Büyük resim : Hydraulic Vane Pump Vanes

Ürün ayrıntıları:

Place of Origin:	China
Marka adı:	Chenlong
Sertifika:	ISO 9001:2008
Material:	SKH51, M2, High Speed Steel
Hardness:	HRC 60°~65°
Precision:	0.003~0.005mm or custom-made is acceptable
Surface Roughness:	Ra＜0.2

Ödeme & teslimat koşulları:

Minimum Order Quantity:	1000 Pcs
Fiyat:	negotiable
Delivery Time:	Acording to the order
Payment Terms:	T/T and so on
Supply Ability:	60,000,000 Pcs/Year

İletişim

Detaylı ürün tanımı

Hydraulic Vane Pump Vanes

Descriptions:

1.Material: SKH51, M2, High Speed Steel

2.Hardness: HRC 60°~65°

3.Precision: 0.003~0.005mm or custom-made is acceptable

4.Surface Roughness: Ra＜0.2

5.Certification: ISO 9001:2008

6.Vane Output around 60000000 PCS/Year.

Description
Thickness	Width	Length	Radius
1.425	8.780	21.945	+R2.0
1.425	8.550	26.940	+R1.8
1.600	9.000	12.000	+R0.9
1.600	8.450	20.000	+R0.9
1.600	9.650	22.000	+R0.9
1.615	8.230	19.980	1side:2*Chamfer40°
1.685	10.200	15.520	+R1.8
1.685	10.200	21.925	+R2.0
1.685	10.200	26.999	+R2.0
1.685	10.200	30.450	+R2.0
1.800	8.000	22.000	-R1.5
1.800	9.500	30.000	-R1.5
1.800	10.000	37.000	-R1.5
1.800	12.000	37.000	-R1.5
1.800	12.000	18.000	-R1.5
2.200	12.000	30.000	-R1.8
2.200	19.000	24.000	-R1.8
2.200	17.000	30.000	-R1.8
2.200	19.000	19.000	-R1.8
2.200	19.000	30.000	-R1.8
2.200	19.000	42.000	-R1.8
2.400	18.000	55.000	-R1.8
2.500	27.000	40.000	Chamfer15°+R1
2.500	27.000	50.000	Chamfer15°+R1
2.500	27.000	60.000	Chamfer15°+R1
2.500	27.000	70.000	Chamfer15°+R1
2.500	27.000	80.000	Chamfer15°+R1
