Product Details:
Payment & Shipping Terms:
|
| Clamping Force:: | 350tons | Style:: | Horizontal |
|---|---|---|---|
| Material:: | PE, Plastic, A.B.S | Feature:: | Energy Saving |
| High Light: | automatic cold chamber die casting machine,high pressure die casting machin |
||

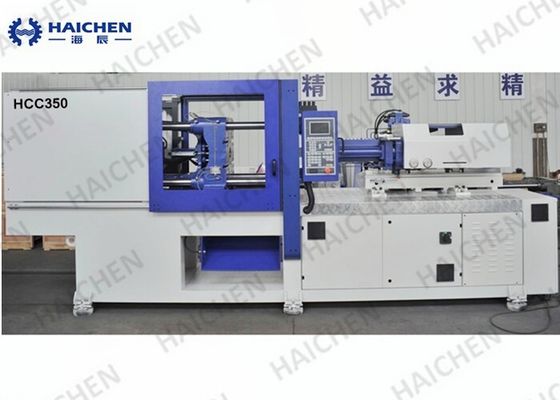

HCC350 Precision Injection molding Equipment With EISSO Transducer
| Condition: | New | Type: | plastic injection molding machine | Style: | Horizontal |
| Brand Name: | HAICHEN | Model Number: | HCC350 | Place of Origin: | Zhejiang, China (Mainland) |
| Plastic Type: | Thermoplastic | Automatic: | Yes | Injection Weight: | 1159(g) |
Quick Detail:
HCC350 adopts servo energy-saving controlling , through proportional control of pressure flow achieve rapid multi-level pressure, speed switching, the system configuration is reasonable, stable and reliable, easy to operate, easy to maintain and other characteristics.
HYDRAULIC SYSTEM
-The double proportional compund value control system pressure and flow, high sensitivity and stability
-Adopt the imported pump, low noise, long lifetime,stabke performance
-The optional world-class servo hydraulic system, lower noise, energy-saving
-The precise feedback control of servo system to the pressure and flow, with higher sensitivity and more accurate repeatability precision
-High performance hydraulic valve, less failure, fast switch, convenient maintenance
-Low pressure mould protect system, which is more suitable for the precision mould
-Greese and lubricating oil in dependent lubrication system can lubricate everywhere in the best situation
Hydraulic Unit:
Valve's manufacture use Taiwan technology; Hydraulic circuit's design meet international security standard; Automatic read the oil temperature; Non-welding tubing, reach long reliability and convenient service; Apply internationally known hydraulic comp-onents.

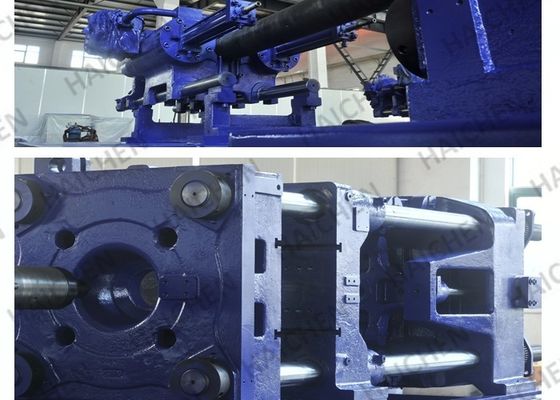

.INJECTION PREPLASTICATION SEAT WITH OIL COPPER SLEEVE
The preplastication seat reciprocates once in every injection motion. Normal non-automatic lubrication in injection unit can't offer lubrication support to this important motion. Thus, we use oil copper sleeve to make sure that injection reciprocates well. Even without lubricating oil support, it can also slide excellently.
Considering cost, however, some materials without oil always cause hamful effect to injection accuracy after a period of time.
Specifications :
INTERNATION CLASS NO |
| HCC350 | ||
|
| A | B |
|
INJECTION UNIT |
|
|
|
|
Screw diameter | mm | 60 | 65 | 70 |
Shot volume(theoretical) | cm3 | 935 | 1098 | 1274 |
Injiection weight(ps) | g | 851 | 1000 | 1159 |
Injection Rate | g/s | 267 | 314 | 364 |
Screw pressure | Mpa | 213 | 182 | 156 |
Screw speed | rpm | 225 | ||
CLAMPING UNIT |
|
| ||
Clamping force | kN | 3500 | ||
Open stroke | mm | 630 | ||
Space between tie bars(W×H) | mm | 670*670 | ||
Max.Mold height | mm | 670 | ||
Min.Mold height | mm | 270 | ||
Ejector stroke | mm | 170 | ||
Ejector force | kN | 90 | ||
OTHERS |
|
| ||
Pump motor power | kW | 35 | ||
Heating power | kW | 19.65 | ||
Machine dimension(L×W×H) | m | 6.0×1.70×2.3 | ||
Oiltank cubage | L | 800 | ||
Machine weight | t | 13.5 | ||
