Product Details:
Payment & Shipping Terms:
|
| Material: | SUS304 | Filling Capacity: | Can Be Customized |
|---|---|---|---|
| Filling Speed: | 30-60 Cans Per Min | Filling Material: | Liquid, Semi Automatic |
| Voltage: | 110V/220V/380V | Filling Accuracy: | ±1% |
| Guarantee: | One Year | Automatic Grade: | Full Automatic |
| Weight: | 650kg | ||
| High Light: | Can Filling Machinery,wine bottle filling machine |
||

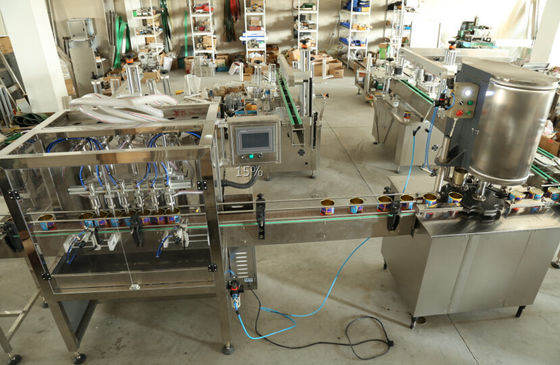

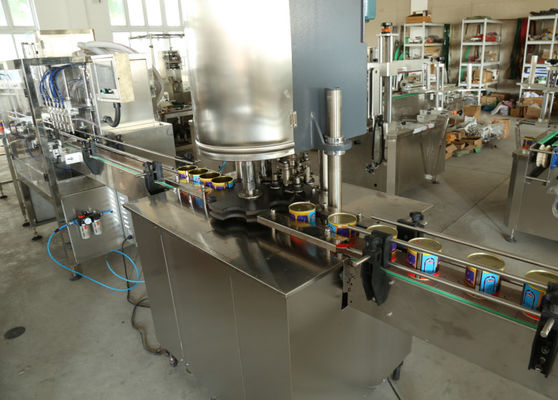

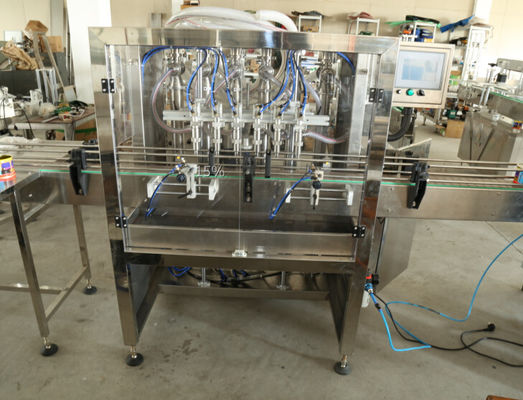

Piston Pump Sticky Liquid Tin Can Filling Machine For Coffee , Vinegar
Overview
The tin can filling machine is a kind of controlled by PLC pneumatic photoelectric sensor, which integrates
filling equipment. This machine is mainly used for the liquid filling flow good performance, it is suitable for
filling wine, vinegar, vegetable oil, medicine, liquid filling. Filling machine applicability, simple structure,
convenient adjustment, the filling speed can adjust themselves according to the requirement.
The machine maintenance clean convenient, quick, in line with the GMP requirements, is the pharmaceutical,
cosmetic, fine chemical and other industries ideal filling equipment, can also and other such as bottle
washing machine, oven, screw cap machine, such as on-line, more economical and practical. By adjusting the filling time by touch screen, it can fill all of the bottles in one filling machine, with quick speed and high precision.

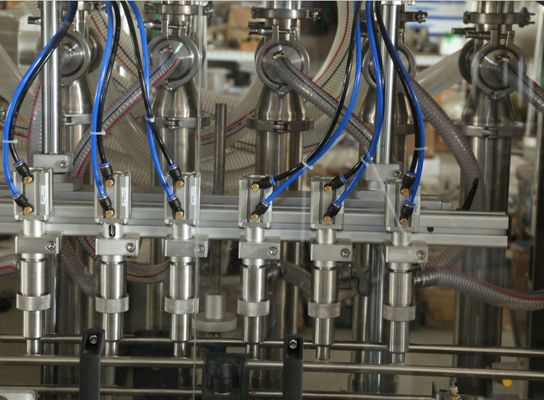

An optional diving nozzle mechanism plunges the filling nozzles into the container for increased production speeds without splashing, and we can produce the different filing nozzles for your different speed requirement. Filling volumes are programmable and can be adjusted from the touch screen.
Features
Caps are sent through electromagnetic oscillation with high cap rate.
It is well laid-out, easy to take apart and wash. No tools are needed to install or strip the machine
The automatic filling machine combines filling and sealing that is advanced design with compact structureand
high reliability.
No bottle no filling. Unique drip proof device in production process, ensure no irrigation constant filling
function.
Frequency conversion control speed, with auto counting function.
The whole machine is designed according to GMP requirements, which is liquid transportation pump made of stainless steel under the international of SUS316L, SUS304.
It can work alone as well as work with other medicines.
The automatic machine will alarm or stop working automatically if unconventional problems happen
(such as counting mistake, miss bottles).
Specification
|
Filling material |
Liquid, sticky liquid |
|
Filling nozzles |
2/4/6/8 can be customized |
|
Metering system |
Piston pump |
|
Filling speed |
Customized |
|
Filling capacity |
Can be customized |
|
Filling precision |
≤± 0.5% |
|
Can diameter |
Customized |
|
Power |
Customized |
|
Application can |
Aluminum can and plastic can |
Functions
A high yield of cap-fastening
Turntable fastness, replace simply and convenient.
Come in and out bottle is easy, frequency conversion adjusting speed.
Operate easily. It is easy maintenance.
Concatenation work, automatism production,
Saving time, improve efficiency.
The whole machine is designed to meet GMP standard.
Our advantages
1. We provide our customers with all components for free within 1 year.
2. We offer long life maintenance,technical support is available.
3. We offer videos of installation and debugging.
4. Our machine is easy for installation. We will take pictures of the disconnect parts of machines, you can install the machines according to pictures. We attach marks on the machines that need to connect, you
can install the machines by yourselves. It is cost saving for you.
5. The spare parts are optional according to customers needs.
6. The handle of the machine can be freely and conveniently turned to adjust so that various types of bottle can be used.
Main components parts
|
N0. |
Name |
Brand |
|
1 |
PLC control system |
Mitsubishi(Japan) |
|
2 |
driver |
KINCO (Germany) |
|
3 |
Frequency changers |
Schneider(France) |
|
4 |
Photo electricity |
Omron(Japan) |
|
5 |
Photoelectric sensor |
FOTEK(Taiwan) |
|
6 |
Touches screen |
Eview(Taiwan) |
|
7 |
Motor |
WANXIN(Taiwan) |
|
8 |
Bearings |
Japan |
|
9 |
Stainless steel material |
304SS |
Process of working
