Product Details:
Payment & Shipping Terms:
|
| Model: | BW-600 | Type: | Horizontal Triplex Reciprocating Double-acting Piston Pump |
|---|---|---|---|
| Stroke (mm): | 100 | Bore (mm): | 100 |
| Volumetric efficiency(%): | 83 | Overall efficiency(%): | 70 |
| Power of dynamic force(kw): | 30 | V-belt pulley size (mm): | (B×5)410 |
| Suction head (M): | 2.5 | Discharge hose diameter (mm): | R4 |
| Lnput hose diameter (mm): | R3 | SIZE(mm): | 2100×995×650 |
| Mass(kg): | 700 | ||
| High Light: | pump equipment,industrial pumps |
||
BW 600 Piston Mud Pump Horizontal Triplex Reciprocating Double Acting Piston Pump
BW-600 Piston mud pump, Piston mud pump, mud pump
Product Introduction
The main purpose and structural characteristics:
BW-600 mud pump is a horizontal double-acting reciprocating triplex piston pump, the main hydrological well drilling rigs and 100 meters automotive drilling rig. Perfusion grout can also be used as the foundation treatment injection pump use. The pump has three flow and three pressure. Compared with the same specifications pump has a smooth, wide range of media, traffic, wide flow range, high output pressure, longer consumable life and stable performance characteristics.
Technical Parameter
|
Model number |
BW-600 |
||||||
|
Type |
Horizontal triplex reciprocating double-acting piston pump |
||||||
|
Stroke (mm) |
100 |
||||||
|
Bore (mm) |
100 |
80 |
|||||
|
Pump speed (r/min) |
148 |
90 |
62 |
148 |
90 |
62 |
|
|
Outputvolume (L/min) |
600
|
350 |
250 |
380 |
230 |
160 |
|
|
Discharge pressure (MPa) |
1.3 |
2.2 |
3.1 |
2.0 |
3.5 |
5.0 |
|
|
Volumetric efficiency(%) |
83 |
||||||
|
Overall efficiency(%) |
70 |
||||||
|
Power of dynamic force(kw) |
30 |
||||||
|
V-belt pulley size (mm) |
(B×5)410 |
||||||
|
lnput speed (r/min) |
500 |
520 |
|||||
|
suction head (M) |
2.5 |
||||||
|
Discharge hose diameter (mm) |
R4 |
||||||
|
Lnput hose diameter (mm) |
R3 |
||||||
|
SIZE(mm) |
2100×995×650 |
||||||
|
(kg)Mass |
700
|
||||||

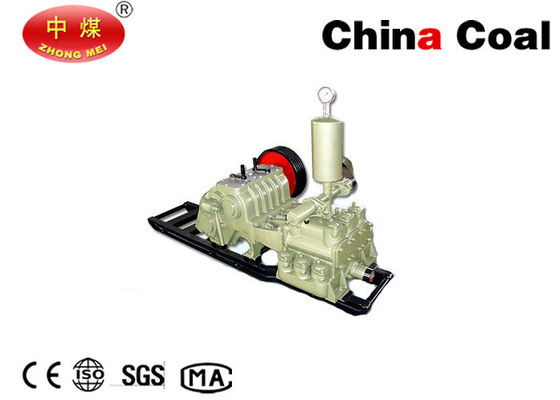

Feature Photo
