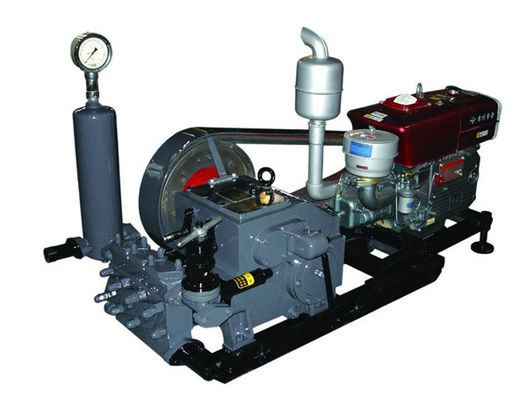

BW-160/10 Mud Pump
1)BW-160/10 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1000 meter.
2)BW-160/10 mud pump is a horizontal, triplex, single acting reciprocation piston pump. It is function is to supply the drilling hole with flushing liquor in order to carry bit. It is used matching drill rigs. It is applied to geological and engineering prospecting such as the railway, the water conservancy, the met-allurgy, the build and the geology etc industry whose hole deep is within 1000m. Also it can be used to deliver water to high mountains or in the execution domain of middle and low pressure grouting and non excavating matching. This pump ha advantages such as small cubage, light mass, long life, simple operation and reliable per-formance, etc
|
Model number |
BW-160/10 |
|
Type |
horizontal, triplex. single acting reciprocation piston pump |
|
Stroke(mm) |
70 |
|
Dia. of piston(mm) |
70 |
|
Pump speed(min) |
200 132 83 55 |
|
Output volume(1/min) |
160 107 67 44 |
|
Pressure(Mpa) |
2.5 4 6.5 10 |
|
Volumetric efficiency(%) |
95 |
|
Overall efficiency(%) |
75 |
|
Input hose diameter(mm) |
51 |
|
Output hose diameter(mm) |
25 |
|
Power of dynamic force(Kw) |
11 13.24 |
|
Rotate speed of dynamics force(r/min) |
1460 2200 |
|
Overall size(length*width*height) |
1400*850*950 |
|
Mass(kg) |
380 |
