Product Details:
Payment & Shipping Terms:
|
Power Source: | AC | Brand Name: | Hengda |
---|---|---|---|
Model: | 2-49SH-6.0/40 | Compression Stage: | 3 |
Weight: | 2000 Kg | Diemnsion: | 2020*935*2100 Mm |
High Light: | high pressure air compressor,quiet air compressor |

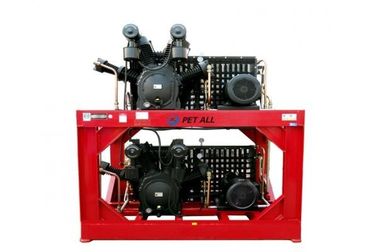

Portable Oil - less Piston Air Compressor High Pressure With Siemen Motor 30*2KW
Quick Detail:
Name |
Air compressor |
Brand Name |
Hengda |
Capacity |
6 M3/Min |
Pressure |
4 Mpa |
Function |
compressed air |
Usage |
Supply compressed air for PET bottle blowing |
Applications:
1. Supply high pressure compressed air
2. High pressure compressed air for bottle blow molding.
PET air compressor
1. Air capacity: 6.0M3/min
2. working pressure: 40bar
3. Power: 30*2kw
4. Motor: Siemens
PET Bottle blowing air compressor
1. Main data of high pressure air compressor
Equipment |
Free Air Delivery |
Pressure |
Power |
Rotating speed |
Size(mm) |
2-49SH-6.0/40 | 6.0 | 40 |
30*2 |
695 |
2020*935*2100 |
Model |
Air capacity |
Working pressure |
Power(Kw) |
Speed(r.p.m) |
Weight(Kg) |
VH-0.7/30 |
0.7 |
30BAR |
7.5 |
680 |
310 |
WH-1.0/30 |
1.0 |
11 |
600 |
430 |
|
WH-1.2/30 |
1.2 |
15 |
760 |
450 |
|
WH-1.5/30 |
1.5 |
18.5 |
790 |
520 |
|
WH-2.0/30 |
2.0 |
22 |
670 |
610 |
|
WH-2.35/30 |
2.35 |
25 |
760 |
620 |
|
2-WH-3.0/30 |
3.0 |
2*18.5 |
790 |
1150 |
|
3-WH-3.6/30 |
3.6 |
3*15 |
700 |
1580 |
|
VH-0.17/35 |
0.17 |
35BAR |
2.2 |
660 |
110 |
VH-0.65/35 |
0.65 |
9.0 |
605 |
420 |
|
WH-1.1/35 |
1.1 |
15 |
900 |
475 |
|
WH-2.0/35 |
2.0 |
22 |
670 |
615 |
|
WH-2.2/35 |
2.2 |
25 |
735 |
600 |
|
VH-0.3/40 |
0.3 |
40BAR |
5.5 |
500 |
290 |
WH-1.0/40 |
1.0 |
11 |
790 |
470 |
|
49SH-2.6/40 |
2.6 |
25 |
625 |
900 |
|
49SH-3.0/40 |
3.0 |
30 |
695 |
920 |
|
2-49SH-6.0/40 |
6.0 |
2*30 |
695 |
2100 |
|
4-WH-4.0/40 |
4.0 |
4*11 |
790 |
2400 |
|
6-WH-6.0/40 |
6.0 |
6*11 |
790 |
3600 |
2. Inspection method:
CAGI
3. Inspection standard:
- AISI
- AMS
- ANSI
- ASME
- ASTM
- AGMA
- AGMA
- NEMA
- VDI
- CAGI-NPEUROP
- MS
4. Technical characteristics:
4.1 Automatic pressure unloading system, ensure machine starting without loading.
4.2 With exhaust check valve on outlet.
4.3 Removable type inlet silencing filter, 10 micron precision.
4.4 Normal inertia flywheel, 2 root V belt drive.
4.5 Splashing lubrication to all moving Parts.
4.6 Light alloy pistons, with PTFE.
4.7 Cast iron cylinder head, independent valve seat.
4.8 Automatic hoop valve piston rings, big flow, more action, high efficiency.
4.9 World famous brand rolling bearing, ensure the stable operation unit.
4.10 Enough space between the cylinder and the crankcase design, avoid friction between connecting rod, moving parts and crankcase.
4.11 With Safety Valve Between after-cooling.
