Product Details:
Payment & Shipping Terms:
|
| High Light: | Water Pumps Parts,Plastic Impeller |
||
|---|---|---|---|
1. Product Description:

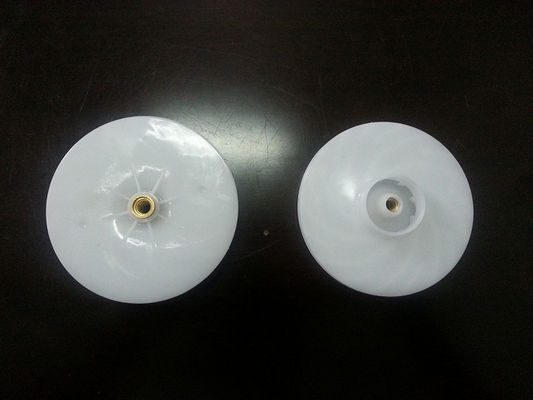

Name: Plastic Impeller For Water Pump Using
Material: POM
Hot market: US, Europe
Color: Black, other customized colors available
Size: Any size, can be customized
Finish: Smooth or any other finishes required
Custom logo: engraving on mold or silk printing on part
Sample: free samples available
Process Type: Injection
2. Mold information
|
Shaping Mode |
Plastic Injection Mold |
|
Application: Industry |
Pump and Motor |
|
Service area |
Transparent, Over mold, double color, air assistant forming, deep barrel, Design R&D, Assembly |
|
Production Equipment |
Elite Plastic Injection Machines ,CNC, Mirror EDM machine, Wire Cutting machine, Carving machine, Lathe, Drilling machine, Grinding machine, Milling machine, |
|
QC Machine |
3D Measurement, Profile Projector, Hardness Tester and other regular size inspection equipment. |
|
Mold Cavity: |
Single or Multi-Cavities Available |
|
Runner System: |
Cold or Hot-Runner Available |
|
Mould Base |
LKM, HASCO, DME etc |
|
Mould Material: |
P20, 738, 738H, 718, 718H, NAK80, S136, S136H, 2378H, 2311, 2083, 2316, H13, SKD61, 2344, 8407. And other material as requirement |
|
Hardness of steel |
Vacuum quenching ,Nitride, HRC41-47, HRC46-50,HRC60 |
|
Plastic Material: |
PA66, ABS, PP,PC, POM ,PVC, PE, PET, PMMA , Acrylic, and other material as requirement |
|
Mold Lead time: |
4Weeks T1 samples , exact time depends on Mould Complexity |
|
Mould Life: |
0.3 Million Shots- 1Million shots |
|
Packing: |
Exporting standard |
3. Technology Advantage: Insert Molding
Plastic injection insert molding is a plastic injection molding process in which thermoplastic material is molded around an insert piece or pieces placed in the plastic injection molding cavity, resulting in a single strongly bonded, integrated assembly, with the insert or inserts encapsulated by the plastic. Inserts can be metal, another plastic, ceramic or just about any substance that can withstand the plastic injection molding process.
