| High Light: | small milking machine,dairy milking machine |
||
|---|---|---|---|

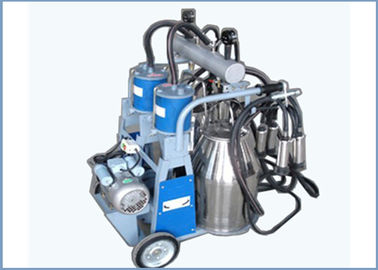

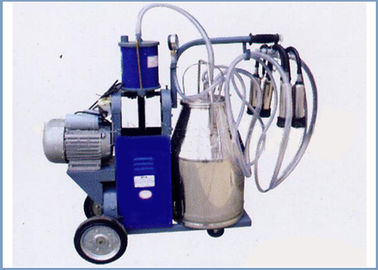

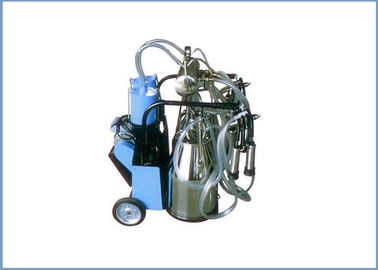

Automatic Trolley Type Piston Pump Mobile Milking Machine For Dairy Cows , 25L
Quick Detail:
- Item: Trolley Type , Piston Pump Mobile Milking Machine For Dairy Cows
- Piston Vacuum Degree: 0.04-0.05MPa (adjustable)
- Pulsation Frequency: 64n/min
- Stainless bucket: 25L
- Model: HL-JN04 & HL-JN05
Description:
-One set of vacuum pump mobile milking machine is constituted by milking pulsator, milking cluster, stainless steel milking bucket, stainless steel teat cup, milking machine liner, milk tube(long or short), air tubing(vacuum hose / pipe)etc. Vacuum system is constituted by vacuum pump (blade type), auto-stop vacuum valve, muffler / silencer, oil pot, vacuum manostat, vacuum ball-valve, vacuum watch, etc.
- But the piston pump mobile milking machine is different from the vacuum pump mobile milking machine, not only the theory, but also the structure. The main component parts of the piston pump type milking machine has Bracket Milk Bucket, Milk Clusetr Group, Milk Claw, Pipe, Milk Bucket and Lid, Vacuum Meter, Piston, Shaft, Motor, Light
Features:
- Operation and maintainence are simple;
- With mobile wheel, flexible and convenient to move to milk;
- 25L Milking bucket, material could be stainless steel or transparent;
- Single bucket or double bucket be offered to choose;
- Different voltages motor to meet different countries to use;
Specification:
| Model | HL-JN04 | HL-JN05 |
| Productivity | 10-12/hour | 20-24/hour |
| Piston Vacuum Degree | 50kpa | 50kpa |
| Pulsation Frequency | 64n/min | 64n/min |
| Motor Speed | 1440rpm/min | 1440rpm/min |
| Power | 0.55kw | 0.55kw |
| Voltage | 220V/50Hz | 220V/50Hz |
Competitive Advantage:
1. Different types mobile milking machine to meet respective usage, such vacuum pump type and piston pump type, blade vacuum pump and dry pump type, single bucket and double bucket, diesel engine type and gasoline type etc.
2. The mobile milking machine could be also used for goats, sheep and buffalo, just changing the milk cluster group.
3. All mobile milking machine model have been approved by CE Certificate.
4. Offerring the techincal support for the mobile milking machine.
