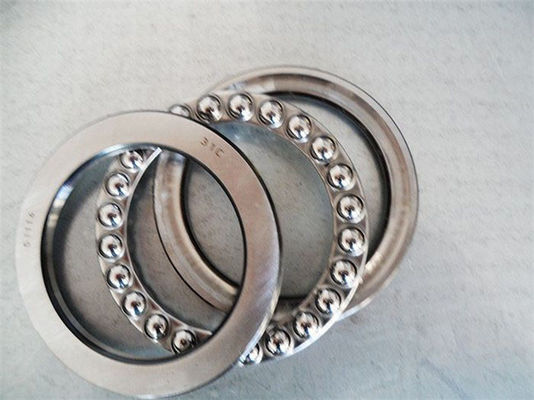

Thrust Ball Bearing 51124 With Housing Washer For Internal Combustion Engine

Thrust Ball Bearing 51124 With Housing Washer For Internal Combustion Engine

Quick Details:

1. Thrust Ball Bearing 51124
2. Bearing Material: Chrome steel GCr15
3. Cage Material: Steel Cage
4. Abundant Stock &Quick Delivery
5. Brands: MBY or OEM

Specifications:

Description:

Designed to handle thrust loads while operating at high speeds, MBY thrust ball bearings(51124) are contains a "washer-like" bearing ring with raceway grooves for the balls. It is classified into those with flat seats or aligning seats depending on the shape of the outer ring seat. These ball bearings can sustain Heavy axial loads but no radial loads.

MBY thrust ball bearings(51124) come in two designs: single direction and double direction. The single direction design comprises two rings, referred to as shaft and housing washers and a single ball and cage assembly. The double direction design, on the other hand, comprises three washers and two ball and cage assemblies. The ball and cage assemblies of the double direction type are separated by the shaft washer.

Product Features and Benefits:

• Available in two designs: single direction and double direction.
• To accommodate initial misalignments in an assembly both design are available with spherical aligning seats or aligning seat washers.
• High quality Steel - Ultra clean steel to extend bearing life by up to 80%.
• High Grade Balls - Quiet and smooth operation even at high speed.
• Optional seating rings take initial misalignment

Applications:

Thrust ball bearing applies only to bear a part of the axial load and low speed, such as crane hook, vertical pumps, vertical centrifuge, jack, low speed reducer, etc. The shaft of the bearing ring, seat ring and rolling body is separate, can be installed separately.
