Product Details:
Payment & Shipping Terms:
|
| Power: | 0.25KW - 1.5KW | Speed: | 2860 Rpm |
|---|---|---|---|
| Type: | Dry | Phase: | 220V And 380V |
| Head: | 5 - 25m | Flow Rate: | 1 - 40 M3/h |
| High Light: | underwater fountain pumps,garden fountain pumps |
||

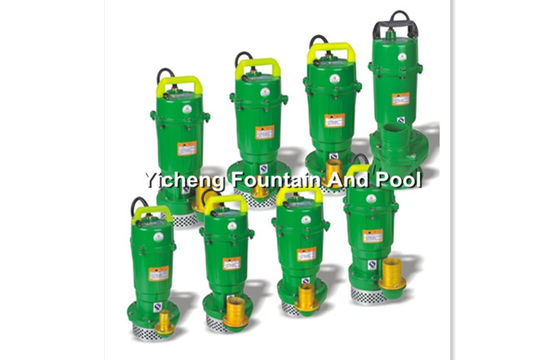

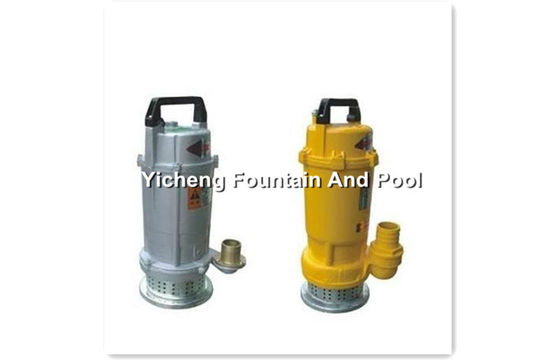

Dry Type Cast Iron Light Weight Submersible Fountain Pump For Fountain Projects
Description:
This series submersible pump is a water pump, electric units into the sealing parts and scuba diving pump power irrigation and drainage equipment, due to the small volume, light weight, especially suitable for the rural downhole pumping water, farmland irrigation and drainage, automation family life water, can also be used to eliminate industrial water, construction drainage, fountains, engineering and other industries.
Delivery Body :
made from iron, particularly resistant to mechanical stress,
knocks and corrosion, fitted with UNI ISO 228/1gas threaded
vertical delivery opening.
Filter: stainless steel.
Impeller: aluminium.
Motor Shaft: AISI 314 stainless steel.
Mechanical Seal: carbon/alumina,
Motor: designed for continuous duty. The thermal cutout relay (motor protector) is incorporated.
Insulation: class B.
Protection: IP 68.
Supply Cable: supplied standard with 5 metres of cable and plug.
External Float switch: standard equipment.
Warranty: 1 year.
Working conditions:
1. Power Supply: 380V/50Hz, 3 Phases
2. Medium: on Corrosive clean water with Temperature less than +30°C, the practical ratio less than 0.01%; diameter less than 0.2 mm; PH 6.5~8.5
3. Pump shall be submerged totally in water, under liquid length from 0.5m to 5m.
| Model | Flow rate(m3/h) | Head(m) | Power(kw) | Voltage(V) | Ratate Speed(rpm) | Inner size of pipe(mm) |
| QDX1.5-12-0.25 | 1.5 | 12 | 0.25 | 220 | 2860 | 25 |
| QDX3-15-0.37 | 3 | 15 | 0.37 | 32 | ||
| QDX6-10-0.37 | 6 | 10 | 0.37 | 40 | ||
| QDX1-20-0.37 | 1 | 20 | 0.37 | 25 | ||
| QX10-10-0.55 | 10 | 10 | 0.55 | 380 | 40 | |
| QX15-10-0.75 | 15 | 10 | 0.75 | 50 | ||
| QX30-7-0.75 | 30 | 7 | 0.75 | 62 | ||
| QX6-25-1.1 | 6 | 25 | 1.1 | 40 | ||
| QX15-14-1.1 | 15 | 14 | 1.1 | 50 | ||
| QX25-9-1.1 | 25 | 9 | 1.1 | 50 | ||
| QX40-6-1.1 | 40 | 6 | 1.1 | 70 | ||
| QX25-13-1.5 | 25 | 13 | 1.5 | 50 | ||
| QX15-18-1.5 | 15 | 18 | 1.5 | 380 | 2860 | 40 |
| QX40-9-1.5 | 40 | 9 | 1.5 | 70 | ||
| QX65-5-1.5 | 65 | 5 | 1.5 | 90 |
