Product Details:
Payment & Shipping Terms:
|
| Driving Mode: | 4 X 2 | Power Of Engine: | 290HP |
|---|---|---|---|
| Engine Standard: | Euro II Euro III Euro IV | Displacement: | 9 |
| Dimension: | 6900 X 2100 X 3200 Mm (LWH) | Volume: | 1.5-5m³ |
| High Light: | Concrete Mixer Truck,Concrete Truck Mixer |
||
290HP Low Rate Rest Cement Mixe Truck Tank 6 Cylinders 4 Strokes
Description of Brand
Howo series products are made by Sinotruck with MAN`s techinique from germany. Both of frame and axle are original technique of German.
The series product include lots of heavy duty trucks,
tippers, mining tippers, tractor traillers, cargo trucks, cement mixer trucks, garbage trucks, fire fight trucks, and etc. For every type of trucks, you have different power to choice. 266, 290,336,371,420HP and you can also choose the driving modes among 4x2, 4x4, 6x2, 6x4,8x4..
With the high quality and competitive price , the products of HOWO series has been exported to more than 100 countries. With our products, our customer accomplished thier works and in the same time , we get also the reputations
Advantages of the product
1.Tank and agitation vane made of Speticial steel (T610), very wearproof
2. With big helix angel, it is easy to put out the cements, and keep low rest rate. We install the assistante vanes inside the tank, assure the homogenerous of cements.
3. Hydraulic pump,motor and reduction box are adopted the PMP or EATON or REXROTH
4. Hydraulic system adopt closed hydraulic circuit
5. Self locked system installed in cabin ,keep safe of working.
Principal Parameters
|
Model |
CVZZ1257N4047D1L |
|
Name |
4x2cement mixer truck |
|
Engine |
290HP 6cylinders 4strokes water cooling turbo inter-cooled |
|
Dimension |
10900*2496*3900 mm |
|
Wheel track |
Front 2022 mm Rear 1830 mm |
|
Wheel base |
1850+3400+1350mm |
|
Vehicle weight |
19450KG |
|
Volume of tank |
15-20 m³ |
|
Transimission |
HW15710 10 forward speeds and 2 reverse speeds |
|
Wheel |
12.00R20 12tires |
|
Rear axle |
18000KG x2 |
|
Fuel capacity |
200L |

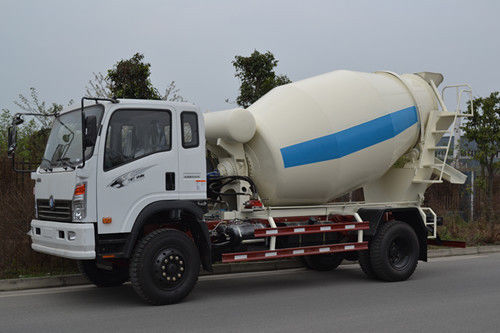

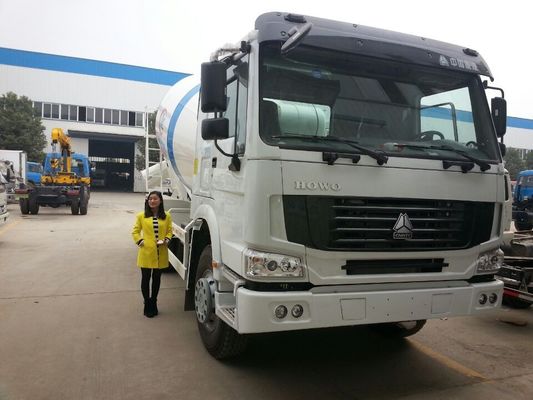

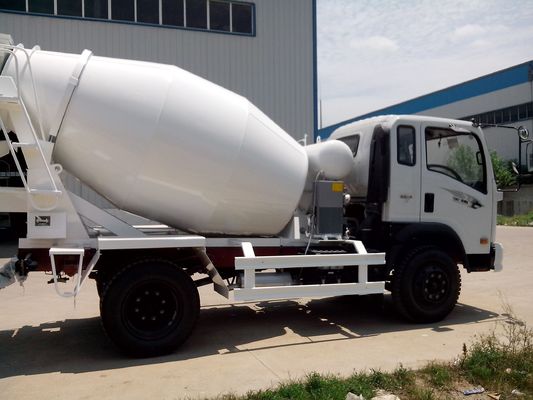

Photos
