| High Light: | CNC Cutting machine,cutting saw machine |
||
|---|---|---|---|
Quick Details
Condition: New Place of origin: Jiangsu China
Model Number: MH350D Machine Type: Pipe and Tube Cutting Machine
Raw Material: Pipe Power: Hydraulic
Certification: CE&ISO Cooling System: water cooling
Technical Parameters:
|
Cutting motor |
YD112M-4/2 3.3/4.0kw |
|
Voltage |
380V 50HZ(Control Line 110V 50HZ) |
|
Water Pump motor |
40W |
|
Applicable Saw |
Ф≤400 Bore Ф32 Pin hole 2-Ф11×63 |
|
Working Pressure |
5.5MPa |
|
Opening of the clamp |
140mm |
|
Oil Pump motor |
Y90L-4 1.5Kw |
|
Vane pump |
VPV1-20-55 |
Configuration Introduction:
Electronic control parts:FR.L and solenoid valve are imported from Air TAC Taiwan；Valve:Taiwan imported hydraulic Asada；
AC contactor:South Korean imported Shilin；Stop button and the start button is: Taiwan Tiandi；Other electrical accessories: Chint.
Rail: Taiwan Shangyin.
Machine features:
1,Reasonable price, easy to operate；
1,Hydraulic control more firmly gripping the workpiece,Feed more smoothly, help the continuity of load operations;
2,Low noise, no dust pollution, the cut is smooth, without burr
3,Can be cut and miter various angles, perfect interface
4,Small machines, miter the same position when the raw materials, small footprint.
Machine Overview:

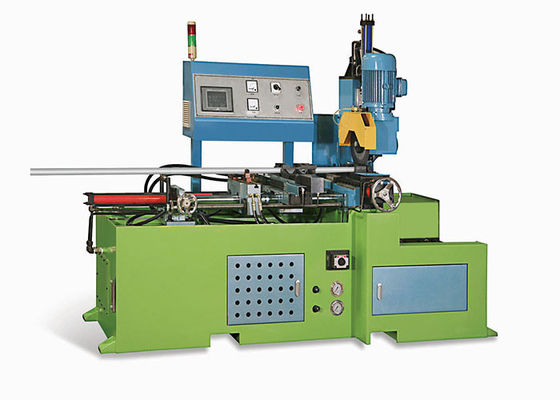

MH-350 Metal Pipe Cutting Machine,based on the introduction of foreign advanced technology,innovative and develop a hydraulic automatic sawing machine,Performance of their products reach the advanced level, Sawing various sectional shapes can be ordinary steel, stainless steel, copper, aluminum and other metal profiles,Especially sawing various pipe is ideal. The machine uses hydraulic control,When sawing without artificial feeding, discharging, Its workpiece clamping, release, feed, retract automatically by hydraulic control ,The machining accuracy, high efficiency, suitable for long-term continuous operation.
Saw blade speed:
Generally mild steel metal selected speed; solid rods, stainless steel and other optional low.(Note: After heat treatment of materials or steel hardness HRC13 more,Is unavailable high-speed hacksaw to saw, otherwise shorten blade life.)
Cutting Quantity:
The machine is equipped with cutting the number of counters one (on the main control panel),The scheduled number of workpieces sawing input counter,The actual amount of cutting will be displayed on a small screen counter, When the actual number sawing consistent with preset number, the machine will automatically stop working, cutting the number of the actual counter is automatically reset to zero.
