Full Hydraulic Driving Drilling Equipment SDC-2A Used For Diamond Bit Drilling Mobile Drilling Rigs

Mobile Drilling Rigs Full Hydraulic Driving Drilling Equipment SDC-2A Used For Diamond Bit Drilling

SDC-2A Mobile Drill

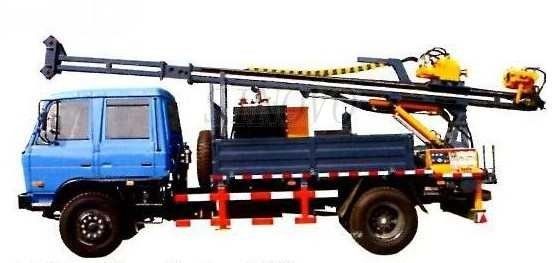

SDC2A mobile drill is one kind of full hydraulic driving drilling equipment installed on the classic of EQ1141NBJ diesel truck.

1. Application range
It is mainly used for diamond bit drilling and carbide bit drilling of solid bed. It also can be uses in exploring drilling and base or pile hole drilling and the small water well drilling.
2. Main features
(1)Rotation unit(hydraulic drive head)adopted the international advanced technique.it was drive by dual hydraulic motor and changed speed by the mechanical style.
(2) The rotation unit has the more stiffness spindle, transmission accurately and running steadily more advantages in the deep drilling.
(3)The feeding and the lifting system use the single hydraulic cylinder driving the chain. It has the long distance characters. It is easy for the long rock core drilling process.
(4)Rig has the high lifting speed, it can decrease the auxiliary time and improve the rig’s efficiency.
(5)The V style orbit in the mast can sure the enough rigidity between the top hydraulic head and the mast and give the stability at the high rotation speed.
(6)The hydraulic driving head can move away the drilling hole.
(7)Rig has the clamp machine system and the unscrew machine system, so it bring the convenient for the rock core drilling.
(8)The hydraulic system adopted the France technique; the hydraulic system has the high reliability.
(9)The mud pumps control by the hydraulic valve. All kind of the handle is concentrate at the control set, so it is convenient to solve the incident at the down of drilling hole.
3. Technical specifications
(1) model car loading hydraulic driving rotation hed rig
(2) Basic parameters
(A) Engineering geology investigation and water well drilling drilling capacity
Hole φ300mm 200m
Hole φ219mm 300m
Hole φ130mm 400m
Rob types φ50,φ60,φ73mm
(B)used for diamond bit drilling with wireline hoists
Rob diameter drilling deep
Φ56(BQ) 1000m
Φ71(NQ) 600m
Φ89(HQ) 300m
Drilling angle 60°~90°
Overall dimensions(L*W*H)
Movement 8880*2464*3680mm
Working 8200*2464*9000mm
Total weight 12400kg
(3) rotation unit(choose 6k-490 hydraulic motor)
Rotation speed (rpm) max torque(N.M)
44(61) 7800
87 3714
142(198) 2400
284 1150
(4) Hydraulic driving head feeding distance 4200mm
(5) Hydraulic driving head feeding system
Type single hydraulic cylinder driving the chain
Lifting force 78KN
Feeding force 38KN
Lifting speed 0-4m/min
Rapid lifting speed 45m/min
Feeding speed 0-6m/min
Rapid feeding speed 64m/min
(6) mast displacement system
Distance 1000mm
Lifting force 100KN
Feeding force 70KN
(7) clamp machine system
Rang 50-200mm
Force 120KN
(8) unscrews machine system
Torque 8000 N.m
(9) Main Winch
Single rope force 50KN
Speed 38m/min
(10) secondary winch (adopt planetary hoisting, provides impacting operating)
Single rope force 30KN
Speed 30, 60m/min
(11) Mud pump
Model three cylinder reciprocating piston style pump
Type BW-450/5
Volume 450,340,240,172L/min
Pressure 2.0 3.0 4.0 5.0MPa
(12)engine diesel engine
Model 6BTA5.9-C180
Power 132KW/2200rpm

4. Optional devices technical specifications
(1) rotation unit(choose A2F160 hydraulic motor)
Rotation speed(rpm) max torque(N.m)
140(216) 3200
280(400) 954
450(700) 1538
900 500
(2) secondary winch (provides wireline hoists)
Single rope force 10KN
Speed 205m/min
(3) Mud pump
Model three cylinder reciprocating piston style pump
Type BW-250A
Volume 250 145 90 52 L/min
Pressure 2.5 4.5 6 Mpa
