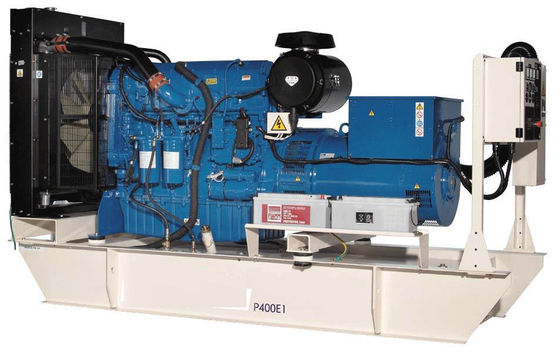

2306C-E14TAG2 Genset Diesel Generator With Water Cooling

1, Generating Set Model:P400E1

2, Engine Make & Model:Perkins 2306C-E14TAG2

3, Circuit Breaker Type:3 Pole MCCB

4, Frequency:50 Hz / 60 Hz

5, Engine Speed:1500 rpm / 1800 rpm

6, Cooling Method:  Water


7, Governing Type:  Electronic

8, Output Type: AC Three Phase

Perkins 2306C-E14TAG2 Genset Diesel Generator

Output Ratings

• Refer to ratings definitions on page

              Ratings at 0.8 power factor.

P400E1

Physical Data

Manufacturer:                                                 Perkins

Model:                                                    2306C-E14TAG2

No. of Cylinders/Alignment:                          6 / In Line

Cycle:                                                            4 Stroke

Induction:                           Turbocharged Air To Air Charge Cooled

Cooling Method:                                              Water

Governing Type:                                          Electronic

Governing Class:                                       ISO 8528 G2

Compression Ratio:                                        15.9:1

Displacement: l (cu.in)                               14.6 (890.9)

Bore/Stroke: mm (in)                         137.0 (5.4)/165.0 (6.5)

Moment of Inertia: kg m² (lb. in²)               3.43 (11721)

Engine Electrical System:

-Voltage/Ground:                                      24/Negative

-Battery Charger Amps:                                   70

Weight: kg (lb)

- Dry:                                                       1690 (3726)

- Wet:                                                      1792 (3951)

Air System :

Air Filter Type:                         Replaceable Element Combustion

Air Flow:m³/min (cfm)

-Standby:                                     26.8 (946)         41.6 (1469)

- Max. Combustion Air Intake

Restriction: kPa (in H2O)              6.2 (24.9)            6.2 (24.9)

Radiator Cooling Air Flow:m³/min (cfm)

                                              444.0 (15680)      600.0 (21189)

External Restriction to Cooling Air Flow: Pa (in H2O)

                                                       188(0.8)              188 (0.8)

Cooling System  :

Cooling System Capacity:l (US gal)            47.0 (12.4)          47.0 (12.4)

Water Pump Type:                                                   Centrifugal

Heat Rejected to Water & Lube Oil: kW (Btu/min)

-Standby:                                                134.9 (7672)        153.2 (8712)

- Heat Radiation to Room:kW (Btu/min)

-Standby:                                                  39.0 (2218)          45.3 (2576)

- Radiator Fan Load: kW (hp)                      9.0 (12.1)           17.0 (22.8)

Cooling system designed to operate in ambient conditions up to 50°C (122°F).

Contact your local FG Wilson dealer for power ratings at specific site conditions.

Performance :

Engine Speed: RPM                                   1500                           1800

Gross Engine Power: kW (hp)

-Standby:                                          353.0 (473.0)                 393.0 (527.0)

-Prime:                                              313.0 (420.0)                 365.0 (489.0)

BMEP: kPa (psi)

-Standby:                                        1935.0 (280.7)                1795.0 (260.4)

-Prime:                                            1716.0 (248.9)                1667.0 (241.8)

Regenerative Power: kW                          27.0                               39.0

LubriCAT-parts-partsion System:

Oil Filter Type:                                                    Eco, Full Flow

Total Oil Capacity l (US gal):                                68.0 (18.0)

Oil Pan l (US gal):                                                 60.0 (15.9)

Oil Type:                                                         API CG4 15W-40

Cooling Method:                                                       Water

Fuel System

Fuel Filter Type:                            Eco Replaceable Element Recommended

Fuel:                                                                 Class A2 Diesel

Fuel Consumption: l/hr (US gal/hr)

110%              100%               75%                50%

Load               Load               Load               Load

P400E1

50 Hz  85.1 (22.5)      64.0 (16.9)  44.5 (11.8)

60 Hz   91.3 (24.1)  70.9 (18.7)    50.1 (13.2)

(based on diesel fuel with a specific gravity of 0.85 and conforming to BS2869, Class A2)

Exhaust System

Silencer Type:                                                                     Level 1

Silencer Model & Qty:                                        SD150 (1) Pressure Drop Across

Silencer System: kPa (in Hg)                             0.01 (0.003)     0.06 (0.018)

Silencer Noise Reduction

Level: dB                                                                    19                    17

Max. Allowable Back

Pressure: kPa (in. Hg)                                            7.0 (2.1)           7.0 (2.1)

Exhaust Gas Flow:

m³/min (cfm)        -Standby:                                66.6 (2352)      95.7 (3380)

-Prime:                       -                       -

Exhaust Gas Temperature:  °C (°F)

m³/min (cfm)        -Standby:                                   494 (921)        389 (731)

P400E1

Alternator Performance Data

Reactances shown are applicable to prime ratings

• Based on 30% voltage dip. Improved motor starting capability is available with optional Permanent Magnet generator or AREP excitation.

**   With optional Permanent Magnet generator or AREP excitation.

Alternator Technical Data

P400E1

Technical Data

3 Phase Ratings and Performance at 50 Hz, 1500 RPM

3 Phase Ratings and Performance at 60 Hz, 1800 RPM

Definitions

Standby Rating

These ratings are applicable for supplying continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings. The alternator on this model is peak continuous rated (as defined in ISO 8528-3).

Prime Rating

These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.

Standard Reference Conditions

Note: Standard reference conditions 27°C (80°F) Air Inlet Temp, 152.4m (500ft) A.S.L. 60% relative humidity. Fuel consumption data at full load with diesel fuel with specific gravity of 0.85 and conforming to BS2869: 1998, Class A2.

Weights and Dimensions

Weights: kg (lb)                                                             Dimensions: mm (in)

General Data

Documents

A full set of operation and maintenance manuals, circuit wiring diagrams, and commissioning/fault finding instruction leaflets.

Generating Set Standards

The equipment meets the following standards: BS5000, ISO 8528, ISO 3046, IEC 60034, VDE 0530, NEMA MG-1.22.

Warranty

All equipment carries full manufacturer's warranty.
