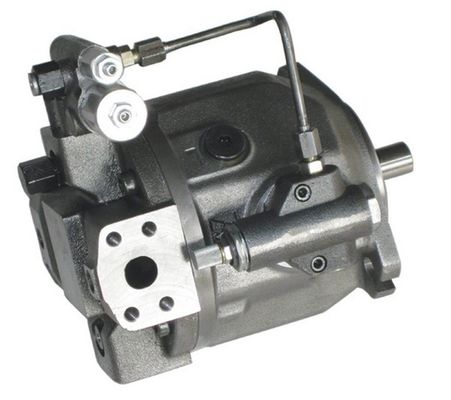

Side Port Truck High Pressure Hydraulic Axial Piston Pump HA10VSO DFLR Series
Quick details
Axial piston pump
Pressure, Flow, torque control
Keyed shaft
Perbunan seal
for Concrete pump truck
Torque Control Axial Pump HA10VSO DFLR Series
Axial piston pump, displacement is 45cc.
Pressure, Flow, torque control
Clockwise Rotation
Perbunan seals
Keyed shaft
SAE 2 hole UNC metric thread
Side port type, single pump
A10VSO28,A10VSO45,A10VSO71,A10VSO100,A10VSO140
|
Displacement |
Mounting Flange A(B) ISO(4)-hole |
Mounting Flange C(D) SAE 2 (4) –hole |
A4 |
A5 |
A6 |
||||||||
|
A1 |
A3 |
B2 |
B10 |
L(L1) |
A1 |
A3 |
B2 |
B10 |
L(L1) |
||||
|
18 |
80h8 |
109 |
7 |
11 |
M16×1.5 |
82.55h8 |
106.4 |
6.3 |
11 |
9/16-18UNF |
134 |
25 |
20 |
|
28 |
100h8 |
140 |
9 |
14 |
M18×1.5 |
101.6h8 |
146 |
9.5 |
φ14 |
3/4-16 UNF |
174 |
32 |
20 |
|
45 |
100h8 |
140 |
9 |
14 |
M22×1.5 |
101.6h8 |
146 |
9.5 |
φ14 |
7/8-14 UNF |
174 |
40 |
25 |
|
71 |
125h8 |
180 |
9 |
18 |
M22×1.5 |
127h8 |
181 |
12.7 |
φ18 |
7/8-14 UNF |
210 |
50 |
25 |
|
100 |
125h8 |
180 |
9 |
17.5 |
M27×2 |
127h8 |
181 |
12.7 |
17.5 |
11/16-12 UNF |
210 |
60 |
32 |
|
140 |
180h8 |
158.4×158.4 |
9 |
φ18 |
M27×2 |
152.4h8 |
161.6×161.6 |
12.7 |
φ20 |
11/16-12 UNF |
200×200 |
63 |
32 |

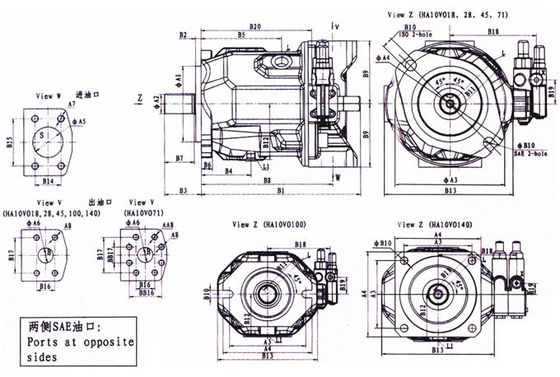

OIL PORT TYPE Dimension
|
Displacement |
PORTS AT OPPOSITE SIDES |
PORTS AT REAR |
(UNC) |
|||||||||||
|
B1 |
B8 |
B9 |
B18 |
B19 |
B20 |
B1 |
B8 |
B9 |
B18 |
B19 |
B20 |
A7 |
A8 |
|
|
18 |
195 |
145 |
63 |
109 |
40 |
130 |
|
|
|
|
|
|
M10(3/8-16UNC) |
M10(3/8-16UNC) |
|
28 |
206 |
164 |
80 |
119 |
40 |
140 |
225 |
170 |
45 |
73 |
43 |
209 |
M10(7/16-14UNC) |
M10(3/8-16UNC) |
|
45 |
224 |
184 |
90 |
129 |
40 |
155 |
244 |
189 |
50 |
81.5 |
40 |
228 |
M12(1/2-13UNC) |
M10(3/8-16UNC) |
|
71 |
259 |
217 |
104 |
143 |
40 |
183 |
278 |
223 |
58 |
91.5 |
40 |
262 |
M12(1/2-13UNC) |
M10(3/8-16UNC) |
|
100 |
329 |
275 |
100 |
148 |
40 |
250 |
344 |
288 |
55 |
99 |
40 |
327 |
M12(1/2-13UNC) |
M14(1/2-13UNC) |
|
140 |
337.5 |
275 |
110 |
183 |
27 |
222 |
379 |
293 |
60 |
140 |
27 |
353 |
M12(1/2-13UNC) |
M14(1/2-13UNC) |
Universal size
|
CC |
B4 |
B5 |
B6 |
B11 |
B12 |
B13 |
B14 |
B15 |
B16 |
B17 |
X |
B |
S |
|
18 |
43 |
83 |
11.5 |
67 |
66 |
152 |
26.2 |
52.4 |
22.2 |
47.6 |
7/16-20UNF |
3/4" |
1" |
|
28 |
40 |
90 |
13 |
74 |
75 |
164 |
30.2 |
58.7 |
22.2 |
47.6 |
7/16-20UNF |
3/4" |
11/4" |
|
45 |
45 |
96 |
13 |
83 |
81 |
184 |
35.7 |
69.9 |
26.2 |
52.4 |
7/16-20UNF |
1" |
11/2" |
|
71 |
53 |
115 |
17 |
98 |
92 |
210 |
42.9 |
77.8 |
30.2 |
58.7 |
7/16-20UNF |
1" |
2" |
|
100 |
95 |
175 |
20 |
106 |
95 |
236 |
50.8 |
88.9 |
31.8 |
66.7 |
7/16-20UNF |
11/4" |
21/2" |
|
140 |
78 |
173 |
21 |
118.5 |
108 |
262 |
50.8 |
88.9 |
31.8 |
66.7 |
M14×1.5 |
11/4" |
21/2" |
