PROCESS: | PS/ABS | HS Code: | 8477800000 |
---|---|---|---|
Product Type: | Sheet | Output: | According To Different Models |
Type: | Sheet Plastic Production Line | Screw Design: | Single Screw |
Material: | 100% Recycled | Application: | Package,protection,etc |
Certificate: | CE,ISO9001 | Feature: | Low Cost |
Highlight: | Plastic Sheet Extrusion Machine |

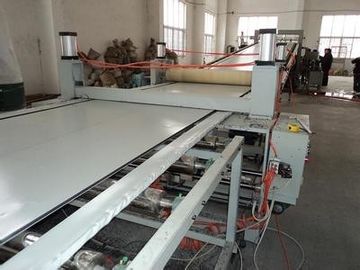

PS / ABS Stationary Plastic Sheet Extrusion Machine , Toy / Lunch Box Sheet Machinery
QUICK DETAIL :
(1) high wearing feature;
(2) Excellent elasticity under large width range
(3)High mechanical strength: good carrying capacity, good impact resistance, outstanding vibration reduction performance
(4) good processability: can be for injection, extrusion, calendering,etc
(5) resistance to oil, water, mildew,etc
(6) strong recycling capacity.
Description:
1/The main machine adopts imported AC frequency converter driving. The temperature control meters adopt Japan RKC product. The ancillary machine vacuum pump and drawing motor adopt high-quality products.
2/The maintenance is simple. After the screw stem cylinder and mould are exchanged, it can straight extrude imitating wood foamed special material. The result is better than the single screw stem extruder.
3/The sheet extruding production line adopts special-designed screw stem, material cylinder, moulds and processing technology. It is equipped with YF model shaped material ancillary to produce PVC products
.
FEATURES:
1.Cushioning and packaging material for electronic equipment, potteries, glassware etc.
2.Insulation materials for agriculture and construction purposes.
3.Antistatic foam for static electricity sensitive components protection
4.Expansion joint filter, under-roof insultion, wall insulation, duct insulation.
5.Pipe insulation for thermal and acoustic applications
Applications:
1. V. F drive for speed regulation. Tandem screw with independent heating zones. Water cooling controlled by solenoid.
2. Circulation water cooling. Gearbox: Circulation water cooling, multiple- spot mechanical active lubing.
3. Hydraulic screen exchange system to save time and reduce wastage. About 30% saved.
4. Die pressure control employed digital display and a septum pressure gage.
5. Winding station: Over turn turret. With meter counter for length pre-setting.
6. High foaming times. OMRON temperature control.
Specifications:
Model |
Unit |
TYJB-75 |
TYJB-90 |
TYJB-110 |
Material applied |
PP,PS,PE |
|||
Width of sheet |
mm |
≤600 |
≤750 |
≤1100 |
Thickness of sheet |
mm |
0.2-1.6 |
0.2-2.0 |
0.2-2.0 |
Extrusion capacity |
kg/h |
60-100 |
100-150 |
150-200 |
Diameter of screw |
mm |
75 |
90 |
105 |
Installed capacity |
kw |
75 |
90 |
120 |
Competitive Advantage:
1.ce certification,SGS,ISO9001.
2. have rich experience .
3.sheet machine by PP,PE,TPU.
