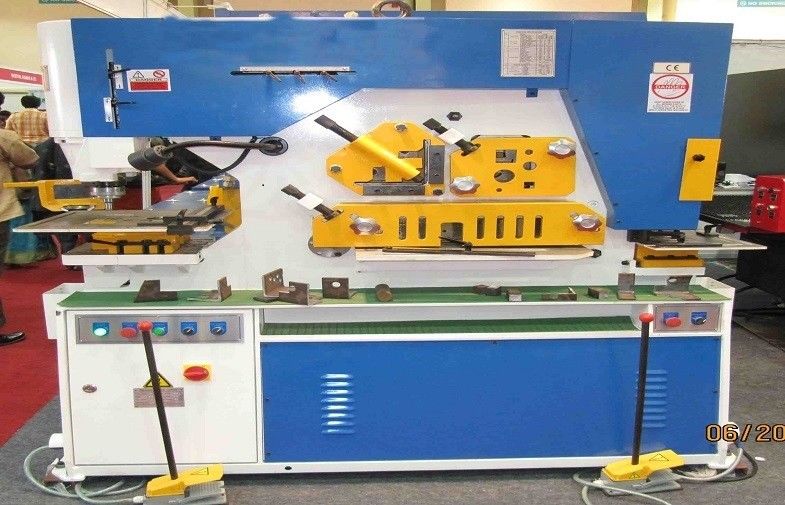

Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max

Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max
Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max

Large Image :  Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max

Product Details:
Place of Origin: wuxi -china
Brand Name: cmc
Certification: ISO
Model Number: Q35Y-25
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negociate
Packaging Details: metal pallet and plastic cover
Delivery Time: 25-30days
Payment Terms: TT,LC,FOB,CIF
Supply Ability: Negociate
Detailed Product Description
Highlight:

light pole production line

Quick Detail:



Name Other names Model Q35Y-25
Ironworker machine-light pole machine to punch holes for light pole base plate

hole punching machine

Ironworker

hydraulic ironworker



Feature Hydraulic Conbined Punching & Shearing
Max.cutting thickness(mm) 25 Color Red, Blue, Yellow, White,ETC.





Description:



1. Hydraulic punch & shear machine
2. Easy Adjustable stroke control with ruler

3. Large punch table with multi-purpose bolster
4. Removable table block for overhang channel / joist flange punching applications
5. Universal die bolster, easy change punch holder fitted, punch adapters supplied
6. Angle, round & square solid mono block crop station
7. Rear notching station, Low power inching and adjustable stroke at punch station
8. Centralized pressure lubrication system
9. Electric panel with overload protection elements and integrated controls

10. Safety movable foot pedal
11. Multiple-functions : Punching, Angle Steel Shearing, Flat Bar Shearing, Round/Square Bar Shearing, Notching, V-Notching, C-Channel Shearing, I-beam shearing, T-bar shearing, Press Brake, Angle Bending and Pipe Notching.





Applications:



Multiple functions including-Punch, Angle Shear, Flat Shear, Round, Square Bar Shear, Rec. Notch, V-Notch, Channel Shear,I beam shear,shearing T-bar, Press Brake, Angle Bending and Pipe Notching! It comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more.

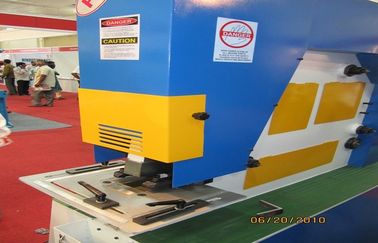

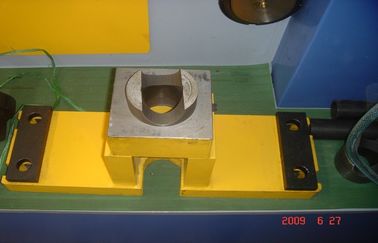

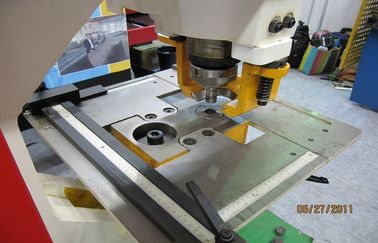

1. PUNCHING

The Punching Station offers a full range of universal punches and dies. Unique style allows for large angle iron punching and large channel punching. A large stripper viewing window and the swing away design offers ease of operation. Two-piece gauging table with rulers and stop is offered as standard equipment. Quick change coupling nut and sleeve makes for rapid replacement or changing of the die in use.

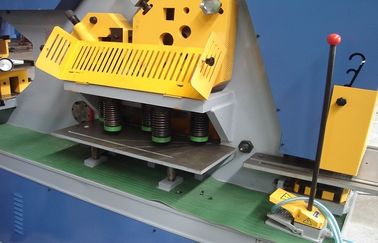

2. FLAT SHEARING

At the Flat Bar Shearing Station you can easily adjust the hold for precision cutting and shearing without loosing operator visibility. The large 15-inch squaring arm is inlaid with a scale and comes standard on all machines. A specially contoured anti-distortion blade provides quality cuts while a lower blade offers maximum versatility with four usable edges. Set Screws allow for easy gapping with no shimming required. An included large squaring arm makes miter cuts easy to do. Three-foot electronic back gauge allows for fine adjustment and precision accuracy and features a large contact button for maximum productivity. The fully protected electrical harness offers both safety and reliability.

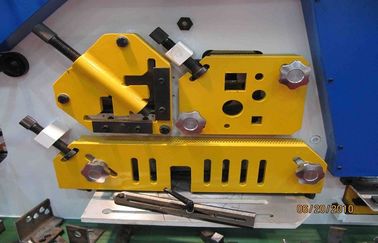

3. ANGLE SHEARING

The angle cut shear has the ability to cut angled iron at a 45°and 90° angle from both the top and bottom leg, allowing for a picture frame like corner to be made for perfect welds. Installed safety guards are both large and strong offering protection while the machine is in use.



4. BAR SHEARING

Round and Square bar shearing station has multiple holes for a variety of sizes. The adjustable hold-down provides a clean squaring cut and with large, heavy-duty knobs the precise hold can be made.



Specifications:



Model Q35Y-25
punching pressure(ton) 110

max.shearing thickness of steel plates(mm) 25
strength of steel plates(N/mm2) ≤450
angle of shear
shearing sizes of one stroke(W×H)(mm) 25×300
ram stroke(mm) 80
number of stroke(times/min) 6
depth of throat(mm) 400
punching thickness(mm) 25
max.diameter of punching(mm) 35
main motor power(KW) 7.5
overall dimensions(L×W×H)mm 2355×960×2090
N.W(kg) 4800





Types of profiled steel for shearing:



Model Q35Y-25
  section size(mm)
round steel

Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max 0



60
Square bar

Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max 1



50x50
90°shearing of equal-angle bar

Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max 2



160x160x14
45°shearing of equal-angle bar

Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max 3



60x60x6
90°shearing of T-bar

Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max 4



160x160x14
I beam steel

Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max 5



200x102x9
channel steel

Hydraulic punch & shear Ironworker Machine , Light Pole Machine cutting 25mm Max 6



200x75x9
