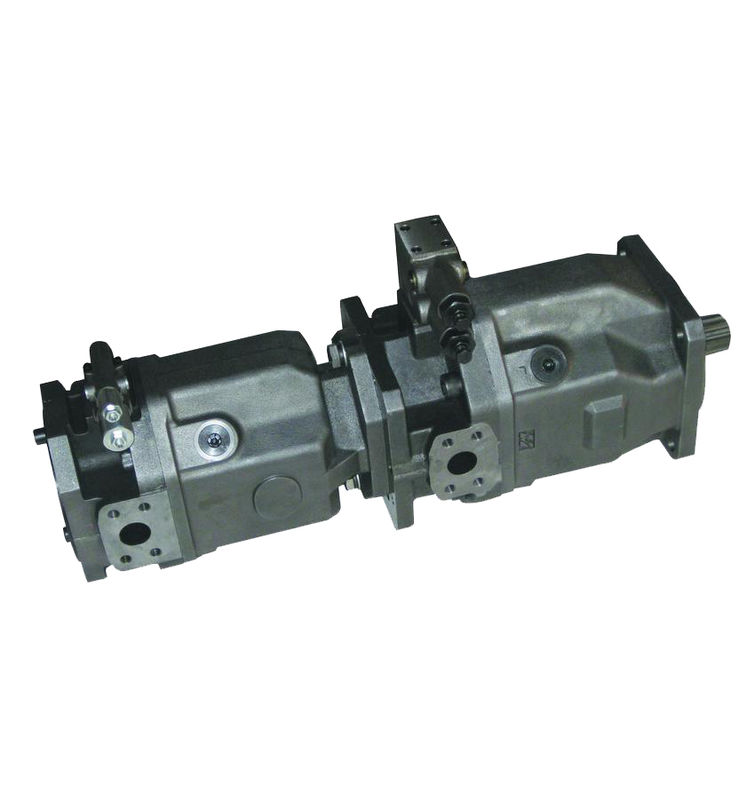

Axial Piston Pressure Control Tandem Hydraulic Pump A10VSO140 for 1800 Rpm

Axial Piston Pressure Control Tandem Hydraulic Pump A10VSO140 for 1800 Rpm
Axial Piston Pressure Control Tandem Hydraulic Pump A10VSO140 for 1800 Rpm

Large Image :  Axial Piston Pressure Control Tandem Hydraulic Pump A10VSO140 for 1800 Rpm

Product Details:
Place of Origin: China
Brand Name: SJ Hydraulic
Certification: ISO9000
Model Number: A10VSO140 DFR/31R-PSD62K24
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month
Detailed Product Description
Highlight:

radial piston pump

Axial Piston Pressure Control Tandem Hydraulic Pump A10VSO140 for 1800 Rpm



Descrition:



Axial piston pump, displacement is 140cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 4 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump



Application:



Hydraulic System, Engineering machine, Concrete pump truck, Boats hydraulic system. Excavator, Loader , Metallurgy hydraulic system.



Competitive Advantage:



Good quality, Competitive price and quick delivery.

Low noise, SmallVolume



Sizes







16/18

28

45

71

100

140

Displacement



Vg  max

cm3

18

28

45

71

100

140

Max speed



nmax

rpm

3300

3000

2600

2200

2000

1800

Max. flow

in  nmax

qv

L/min

59.4

84

117

156

200

252

in 1500 r/min

27

42

68

107

150

210

Max. power(Δp=280bar)

in nmax

Pmax

Kw

27.7

39

55

73

93

118

in 1500 r/min

12.6

20

32

50

70

98

Max. torque(Δp=280bar)

in Vg  max

Tmax

Nm

80.1

125

200

316

445

623

Weight



m

Kg

12

15

21

33

45

60
