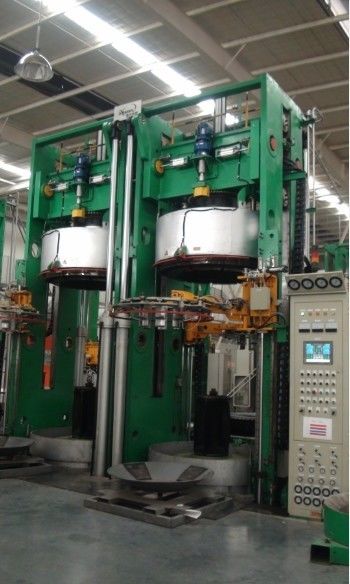

Automatically 315T Hydraulic Tyre Curing Press With Modular 4 Columns

Automatically 315T Hydraulic Tyre Curing Press With Modular 4 Columns
Automatically 315T Hydraulic Tyre Curing Press With Modular 4 Columns Automatically 315T Hydraulic Tyre Curing Press With Modular 4 Columns Automatically 315T Hydraulic Tyre Curing Press With Modular 4 Columns

Large Image :  Automatically 315T Hydraulic Tyre Curing Press With Modular 4 Columns

Product Details:
Place of Origin: CHAGNZHOU
Brand Name: ROSNM
Certification: ISO9001
Model Number: 48 model
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 60days
Payment Terms: T/T
Supply Ability: 30SET/2 MONTH
Detailed Product Description
Highlight:

Flat Vulcanizing Machine





ISO9001 MODULAR DESIGN OF HYDRAULIC TYRE CURING PRESS FOR TIRE





Quick Detail:



Name

Tire Curing Press

Brand Name

ROSNM

Color

As your request

Feature

B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame

Warranty

1 year

Place of Origin

CHANGZHOU

control

PLC

Certificate

ISO9001







Description:



PRODUCT IDENTIFICATION NUMBER: LLY1650BBC0B

> Max Mould Closing Force:3800KN

> Hydraulic Pressure:17Mpa

> Dia. of Platen:Φ1650mm

> Bead Range:20"-25"

> Power supply: 380VAC±10%  50Hz

> Auxiliary power: 220VAC  50Hz

> Equipment using the environment temperature: Max. 70 ℃

> Circle: ≤70 sec

> Maximum setting steam pressure:(Decided by user)

> Maximum inner pressure nitrogen of vulcanization: 2.4 MPa

> Central organization parameters Capsule type:B TYPE

Stroke of upper ring: 650mm

Stroke of lower ring: 150mm

Diameter of central rod of upper ring: φ48

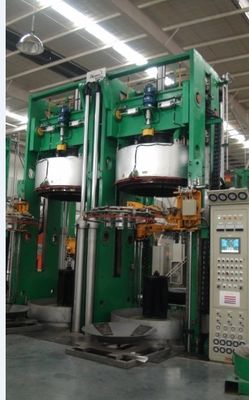

Automatically 315T Hydraulic Tyre Curing Press With Modular 4 Columns 0





Applications:



Used for vulcanization of steel-belted tire





Specifications



Model

RUBBER TIRE

Type of main drive

Steel-belted tire

Diameter scope of tire

16″~25″

Maximum mold clamping force

4900KN × 2

Height of vulcanized green tire

2350~650mm

Mold type

Segmental mold

Stroke of upper ring

1150mm

Stroke of lower ring

150mm

Once-setting nitrogen pressure

0.02—0.03Mpa

Twice-setting nitrogen pressur

0.06-0.1Mpa

Nitrogen pressure

Max. 3.0Mpa

Number of working positions

4 working positions

Position changing type

Turn 180°

Adjustment of  chuck gap

Manually/automatically

Three pneumatic components (air pressure regulator, air filter and atomized lubricator)

SMC

Nitrogen balance valve

USA HONEYWELL

Displacement pickup

German Balluff,German ASM,American MTS

Approach switch

Japan  OMRON,Korea  AUTONICS,German TURCK

Rotary connector

Japan ROCKY /Korea VALAS

Hydraulic pump

Japan YUKEN Germany  REXROTH USA VIKERS





Why to choose our Tire Curing Press



1: Tire pushing device (lower ring)

Each mold is with two oil cylinders and direct pushing type.

2: It’s is structure type, with sufficient rigidity.

3: Main body

The main body consists of rack, opening and closing organization of mold, vulcanization house and adjusting mold organization, pressure organization, central organization and tire pushing device and so on.

4: Tire mounting organization

Consisted by tire holder and single-position tire-storing device, it adopts mechanical claw with double-column structure and oil cylinder for lifting use, whose lifting position can be adjusted, with lifting capacity of the mechanical claw ≥80kg; adopt gas cylinder for turn-in and turn-out, which can be done at the same time on left and right, with buffering device; the claws are short type and its opening and closing operation is driven by air cylinder, with total 6-8 pieces of claws. Air control hose should be placed inside tank chain.

5: Vulcanization house and adjusting mold organization

Regarding labyrinth type of hot plate, the precision of temperature uniformity of hot plate is ±1℃ after increase the temperature.

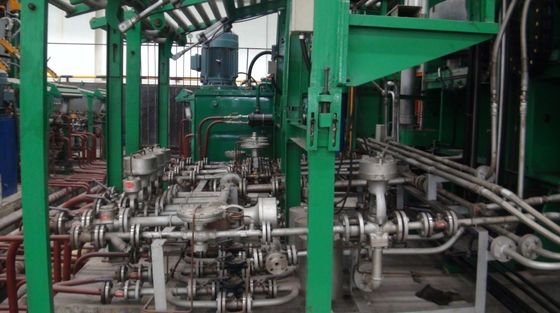

Automatically 315T Hydraulic Tyre Curing Press With Modular 4 Columns 1
