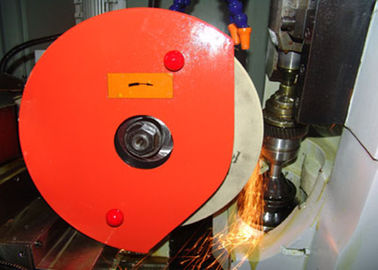

Automatic Hydraulic Gear Grinding Machine For Motor And Reducer , Five Axis Four Linkage

Automatic Hydraulic Gear Grinding Machine For Motor And Reducer , Five Axis Four Linkage
Automatic Hydraulic Gear Grinding Machine For Motor And Reducer , Five Axis Four Linkage Automatic Hydraulic Gear Grinding Machine For Motor And Reducer , Five Axis Four Linkage

Large Image :  Automatic Hydraulic Gear Grinding Machine For Motor And Reducer , Five Axis Four Linkage

Product Details:
Place of Origin: CHINA
Brand Name: JJR
Certification: ISO9000
Model Number: YK7225
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in wooden cases
Delivery Time: 1month
Payment Terms: T-T , L/C
Supply Ability: 50sets/month
Detailed Product Description
Modules: 1-5mm Number Of Teeth: 12-256
Machining Diameter: 10-250mm Maximum Face Width (Straight Teeth): 95mm
Helix Angle: ±45° Wheel Diameter: 400mm
Rated Wheel Revolutions: 970-1500rpm Standard Configuration Of CNC System: 1 Set
Highlight:

cnc gear grinding machine

Automatic Hydraulic Gear Grinding Machine  For Motor And Reducer, Five Axis Four Linkage:





Quick Details:



Mainly used for high precision machining of maximum diameter of 250mm, maximum modulus 5mm straight, cylindrical helical gear grinding machine YK7225A.

Particularly suitable for motor and reducer, reducer, engineering machinery, construction machinery, precision equipment, instruments and all kinds of precision gear pump products of high precision spur gears, helical gears in batch and mass production.

The machine adopts worm wheel and gear (workpiece) continuous generating grinding principle with electronic gear box (EGB) function, so that the machine has high efficiency and precision. The machine has automatic grinding, grinding wheel modification and automatic trimming function.





Descriptions:



1.   This machine is equipped with Li Shile (REXROTH), numerical control systems and the digital servo system, the realization of the five axis four linkage.. The workpiece radial motion (X axis), the tangential motion (Y axis), the axial movement (Z axis), the grinding wheel spindle rotation (B axis), the workpiece spindle rotation (C axis).

2.   The machine tool spindle, the spindle is driven by a dedicated servo motor, controlled by a servo system synchronous tracking, stepless speed regulation according to processing requirements.

3.   This machine has the tooth profile modification function, also can according to user requirements, the allocation of special diamond roller on the workpiece profile modification.

4.   The machine has teeth on both sides of grinding allowance automatic distribution function

5.   Automatic balance device of the machine tool selection of grinding wheel on line.

6.   This machine has the automatic wheel dressing and compensation function.

7.This machine is easy to operate, machine processing program with fixed, operators only need to input the parameters and the cutting feed rate can achieve automatic grinding.

8.   The NC system, main electrical, hydraulic components, bearings, ball screw, linear guide, sealing parts are imported or domestic high-quality brand-name products, so as to ensure the reliability of the machine tool.

9.   Electrical control cabinet of the machine configuration independent, and configuration of the air conditioning.

10. This machine tool hydraulic, configuration independent cooling system.

11. This machine configuring security, closed type protective cover, and the configuration of the oil mist processor.





Specifications:



Modules

mm

1-5

Number of teeth



12-256

Machining diameter

mm

10-250

maximum face width (Straight teeth)

mm

95

Helix angle



±45°

Wheel diameter

mm

400

Rated wheel revolutions

rpm

970-1500

Host dimension (L×W×H)

mm

3000×1600×2600

Weight

t

5





Standard Configuration:



CNC system

1set

Single- angle diamond wheel dressing

1pair

Hydraulic tank , cooling tank

1set each

 Cylindrical dressing diamond pen

1

Mist processor ; centrifugal separator

1set each

Wheel Flange (with wheel)

2set

Electrical control cabinet air conditioner

1set

Grinding spindle

2set

Optional accessories

Cooled oil cooler

1set

 Field balancing instrument

1set

Hydraulic oil cooler

1set

Automatic Balancing Instrument

1set

modules

mm

1-8

Number of teeth



12-200

machining diameter

mm

20-400

Maximum face width(Straight teeth)

mm

190

Helix angle



±45°

Wheel diameter

mm

400

Rated wheel revolutions

rpm

970-1500

Host Dimension(L×W×H)

mm

3000×1600×2600

weight

t

14







Company Profile:

Heng Yong company gathered many experienced experts. This team is lead by people have over decades of experience, and filled with young, energetic engineers.  With strong research and developing ability, our company put extraordinary effort on developing complete sets of gear machinery.  Now we are able to provide our customer the main products as follows: Gear Shapers, Straight Bevel Gear Generators, Spiral Bevel Gear Generators, Spiral Bevel Gear Grinders, Hypoid Gear Testers, Gear Lappers, Gear Quenching Press, Gear Chamfering Machines, Gear Hobbers, Honing Machines, Vertical & Horizontal Machining Centers, Special Precision Speed Reducers, Roll Stander for Seamless Tube Stretch Reducing Mill, Gear Coupling Family, Low Drive Devices and Environmental Protective Equipment of 16 kinds, more than 30 families, and more than 150 types and specifications. The company focus on developing heavy-duty, large CNC gear machinery, which are urgently needed by the government and makes industrialize as soon as possible, provide a great variety of advanced gear machinery to the market. The company is using the leading 3D designing software for developing and designing. The company combines producing with research and development by Cooperating with TIANJIN University and other colleges for many years.
