Product Name: | CNC Shear Machine | Control System: | CNC |
---|---|---|---|
Type: | CNC Machine | Application: | Indoor |
Work Piece Material: | Steel | Automation: | Automatic |
Extra Services: | Custom-designed | Maintenance: | One Year |
Highlight: | Metal Shearing Machine |

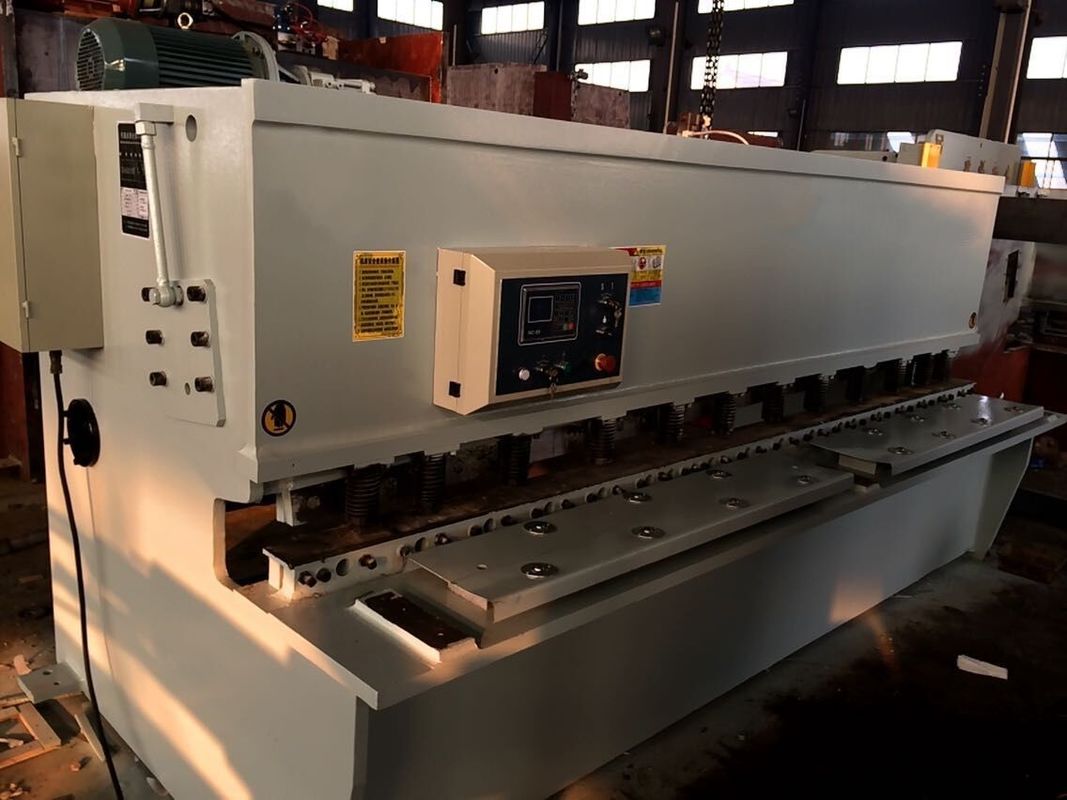

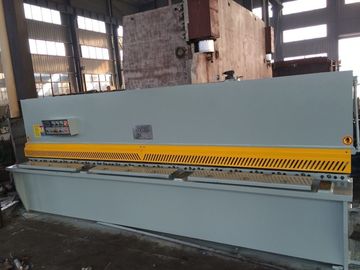

CNC Hydraulic Shearing machine
1.Specifications:
No. | Parameter name | Values | Unit | Remarks | |
1 | Thickness can be cut | 6 | mm | σb≤450N/mm2 | |
2 | Shearing width | 6000 | mm |
| |
3 | Shear angle | 0.5-1.5 | Degree |
| |
4 | Blade gap | 0.08-1.6 | mm |
| |
5 | Trips | 20-45 | 1/min | Including the smallest segmentation route | |
6 | Throat depth | 140 | Mm |
| |
7 | Blade Length | 2600 | Mm |
| |
8 | After the block of the gauge range | 20-800 | Mm |
| |
9 | Gear pumps | Displacement | G50 | ml/r |
|
10 | The main motor | Power | 18.5 | kW |
|
2.Description:
1. Hydraulic cylinders in the form of a two-series body. Due to changes in shear cuts from left to right, so the load also changes the fuel tank can be effectively used in series to with stand these loads change (anti then set) to prevent changing the shear angle; due to the application of a series of tanks, turret is not exposed to as torsional loads wing beam shears knife like that, it is relatively more compact structure.)
2. Using the three-rail oblique edge structure, namely a knife to constrain cross-section through three fulcrum, while the former is the elastic fulcrum through be for the spring preload, excluding the gap between each motion pair, while the knife parallel processing error frame rail surface can be compensated, thus ensuring the stability of the blade gap; three-wheel, and the fulcrum is adjustable eccentric pivot through eccentric adjustment under the knife around the fulcrum, leveraged, blade gap is changed so as to achieve the purpose blade gap adjustment. As the eccentric adjusting drive motor on the outside of the machine column easy to adjust, so that the blade gap adjustment there fore becomes very easy and fast.
3. Adjust able blade gap, easily and quickly(blade sides available).
4. The electric back gauge with a cushioning effect.
3.Main configuration:
No. | Name | Quantity | Origin /brand |
1 | Asynchronous motor | 1 | Siemens Pui |
2 | Major appliances | 1 | Siemens/Schneider |
3 | Gear pumps | 1 | Sunny |
4 | Hydraulic valve | 1 | Shanghai |
5 | Cylinder | 1 | Nantong Samp |
6 | Seals | 1 | Japan KVK |
7 | Blade | 1 | Shanghai on the rich |
8 | DAC-360CNC system | 1 | Eston |
