Detailed Product Description:
|CNC Control System:||
Estun E10 E200
Jin Qiu DTC800
|Function:||Bending Steel Plates|
|Product Name:||Press Brake Machine||Steel Sheet Thickness:||12mm|
|Steel Sheet Width:||4000mm||Use:||Metal Plates|

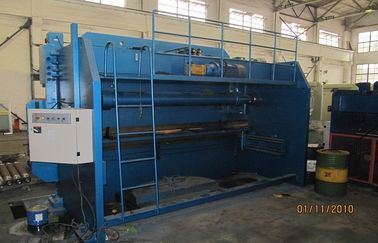

Bending Steel Plates Press Brake Machine For steel tower 400T/4000mm
1. punch force: 4000KN
2. bending max steel sheet width :4000mm
3. bending max steel sheet thickness :12mm
1. The steel-welded frame could make sure high strength, high rigidity and high accuracy.
2. Using of mechanical forced synchro system, both sides of sliders move in parallel by synchro axis.
3. Deflection compensation unit is installed in the upper mold,Upper mold clamping device is an option.
4. When NC press brake, X-axis backgauge is driven by servo motor ,adoapted ball-screw and linear guide way.
5. When NC press brake, ram stroke are controled by servo moto,it could make sure higher positioning accuracy.
Press Brake Machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.
Main Technical Features
|2||Length of table||4000||mm|
|3||Distance of column||3100||mm|
|7||Speed of ram slide block||Approach||70||mm/s|
|11||Volume of oil tank||700||L|
1) Our machine performance quality and chcheap, known in the industry.
2) One year guarantee.
3) Fast and high quality after-sales service.
4) We can design the machines according to customers’ special requirement.
5) We have professional team for service.
MANUFACTURER: WUXI JINQIU MACHINERY CO.,LTD
