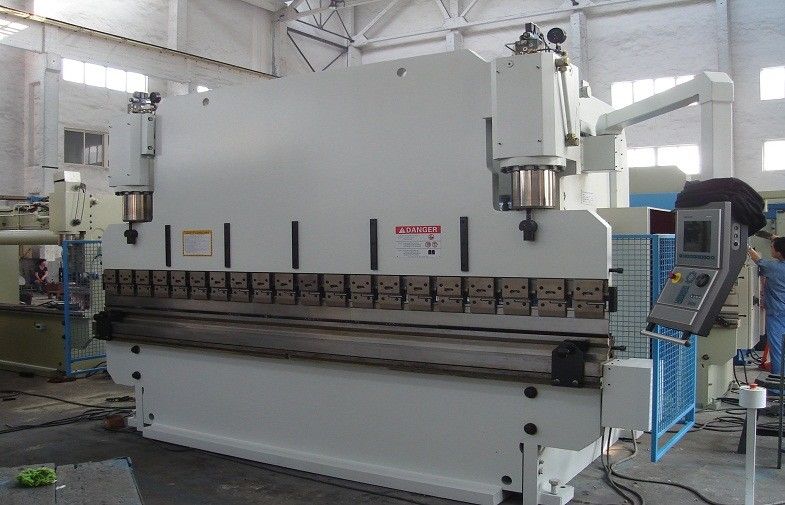

Steel bending machine CNC Hydraulic Benchtop Press Brake safety 10000KN 1000T / 6000mm

Steel bending machine CNC Hydraulic Benchtop Press Brake safety 10000KN 1000T / 6000mm
Steel bending machine CNC Hydraulic Benchtop Press Brake safety 10000KN 1000T / 6000mm
video play

Large Image :  Steel bending machine CNC Hydraulic Benchtop Press Brake safety 10000KN 1000T / 6000mm

Product Details:
Place of Origin: Wuxi-china
Brand Name: CMC
Certification: ISO9001
Model Number: WE67K-1000/6000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Metal pallet
Delivery Time: According requirement
Payment Terms: Down Payment 30% T/T ,70% T/T Before Shipping
Supply Ability: According requirement
Detailed Product Description
Highlight:

sheet metal working machine

Detailed Product Description:



CNC Control System:

Delem DA-52

DA-56

DA-66T



Function: Bending Steel Plates
Product Name: CNC Tandem Press Brake Steel Sheet Thickness: 20mm
Steel Sheet Width: 6000mm Use: Metal Plates





Quick Detail:



Metal Plates CNC Hydraulic Press Brake With Delem DA52 10000KN 1000T/6000mm

Select And Use DELEM DA52 CNC Control System

1. punch force: 10000KN

2. bending max steel sheet width :6000mm

3. bending max steel sheet thickness :20mm





Description:



1. With stylish design, high rigidity, high speed.

2. Electro-hydraulic servo system,closed loop control system controls accuracy.
3. Worktable adopts hydraulic deflection compensation to ensure the accuracy of the workpiece.

4. Back gauge is driven by servo motor ,adoapted ball-screw ,and linear guide way,it could make sure positioning accuracy.





Applications:



CNC press brake machine is widely used in large steel structure, steel tower, truck carriage, electric cabinet, decoration industrial. With different dies provided, the subscriber can get the metal plate bent into different shapes of work pieces.



Specifications:



Main Technical Features

NO. Name Value Unit Remark
1 Working force 10000 KN
2 Length of table 6000 mm
3 Distance of column 4800 mm
4 Throat depth 1400 mm
5 Open height 1350 mm
6 stroke 400 mm
7 Speed of ram slide block Approach 70 mm/s
Working 8 mm/s
Return 70 mm/s
8 Main motor 2×45 KW
9 Overall dimension Length 6240 mm
Width 8080 mm
Height 6600 mm
10 Weight 118000 Kg
11 Volume of oil tank 2100 L













































































Competitive Advantage:



1) Our machine performance quality and chcheap, known in the industry.

2) One year guarantee.

3) Fast and high quality after-sales service.

4) We can design the machines according to customers’ special requirement.

5) We have professional team for service.





Communication with customers



A: what is difference during DA-52, DA-56, DA-65W and DA66T?



About CNC press brake machines, usually, we suggest four kinds of controller system more often: Delem DA-52, DA-56, DA-65W, DA66T Following is their characters:



DA-52 control system:

  1. With LCD true-color display
  2. Max control 4 axis(Y1,Y2 and two auxiliary axis)
  3. worktable crowning compensation control
  4. tooling, material and product library
  5. USB interface
  6. Advanced Y axle control algorithm, it can control closed loop, also open loop

DA-56 control system:

  1. With LCD true-color display
  2. 2D programming
  3. Bending process
  4. Developed length calculation
  5. worktable deflection compensation control
  6. tooling, material and product library
  7. USB interface
  8. Servo control, frequency control and AC motor control

DA65W controller system:

  1. Modular structure, max 20 axis
  2. Built-in PLC reduces machine circuit design, let the machine more stable
  3. Processing automatic calculation and optimization
  4. self diagnosis function supply diagnosis for the whole system and components function
  5. multi-language selection
  6. 3.5" floppy drive and RS232 interface, program and parameter can realize external storage, online and offline programming.
  7. 2 D graphics mode programming, adopts different gray scale to display processing workpiece, tooling.
  8. It can works 2500 program, 90 tooling.
  9. Calculate clamping point, tool safe area, bending force, unloading distance and worktable compensation.

DA66T controller system:

  1. Error message prompting system and help text. It can supply timely warning for your error programming and wrong operation, which save much time that looking for error.
  2. Standard Ethernet interface, connect windows
  3. real-time windows system, multi-task treatment and file management
  4. USB interface, connect external device: mouse and fingerboard
  5. Colorful display: 12 inch
  6. TFT 2D graphics mode programming
  7. Automatic bending processing
  8. PLC function
  9. operation warning system

MANUFACTURER: WUXI JINQIU MACHINERY CO.,LTD
