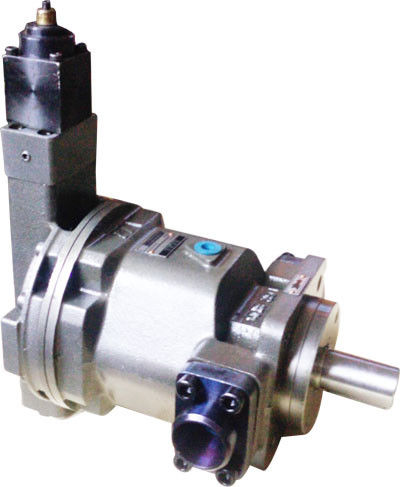

Small Low Noise Variable Axial Piston Pump , Peak Pressure 400bar HY Series

Large Image : Small Low Noise Variable Axial Piston Pump , Peak Pressure 400bar HY Series

Product Details:

Place of Origin:	China
Brand Name:	Hengyuan Hydraulic
Certification:	ISO9000
Model Number:	HY80Y-RP, HY160Y-RP, HY250Y-RP

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

Highlight:	variable hydraulic pump

Small Low Noise Variable Axial Piston Pump , Peak Pressure 400bar HY Series

Quick details

Variable Axial Piston Pump HY Series

Rated pressure 315 bar

Peak pressure 400bar

displacement is 80 cc

Keyed shaft, single pump

Low noise, Small Volume

It is Axial piston pump, Rated pressure 315 bar, Peak pressure 400bar, displacement is 80 cc, Constant power control, Clockwise Rotation, Perbunan seals, Keyed shaft, single pump.

Small Low Noise Variable Axial Piston Pump , Peak Pressure 400bar HY Series 0

Features
1. Swash plate design axial variable piston pump used in open
circuit.
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
response times.
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.
