Rexroth A4VFO axial piston pump

Rexroth A4VFO axial piston pump
Rexroth A4VFO axial piston pump

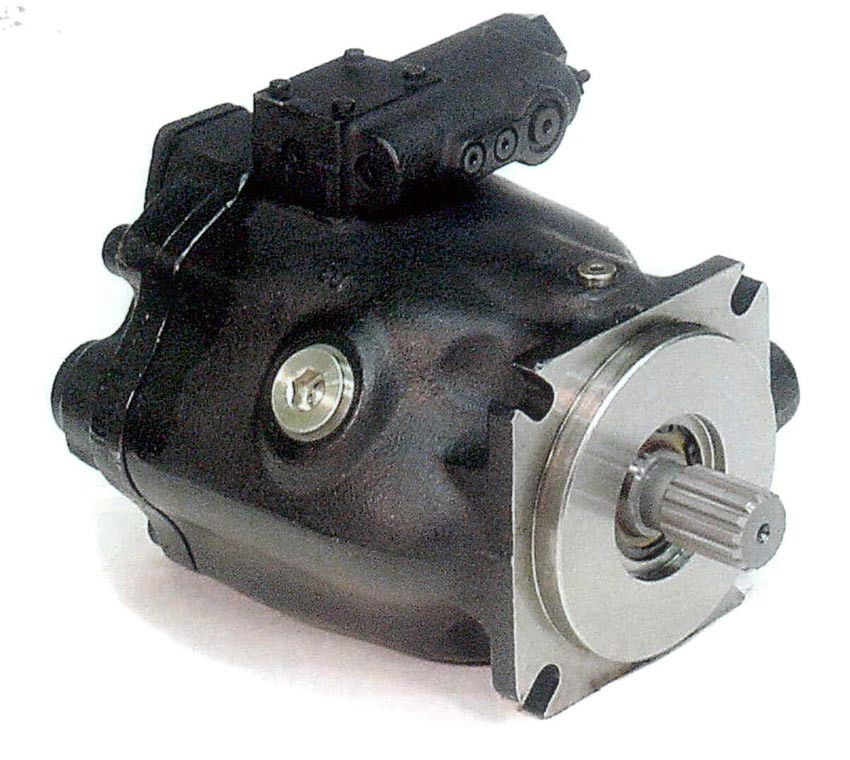

Large Image :  Rexroth A4VFO axial piston pump

Product Details:
Place of Origin: Zhejiang
Brand Name: Rexroth
Model Number: A4VFO
Rexroth A4VFO axial piston pump: Rexroth A4VFO axial piston pump
Pressure: High Pressure
Standard or Nonstandard: Standard
Fuel: Hydraulic
Power: Hydraulic
Usage: Oil
Application: Industrial machinery, eningeering machinery and martime boat etc
Structure: Piston Pump
Theory: Rotary Pump
Category: Special-purpose Bearings
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units
Price: Get Latest Price
Packaging Details: Standard export carton/plywood case
Delivery Time: Within 30 days after receipt of payments
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 1000 Unit/Units per Month
Detailed Product Description


Rexroth A4VFO axial piston pump
1.For hydraulic drive in open circuit
2.Swashplate, fixed displacement piston pump

Rexroth A4VFO-axial piston pump

1. For hydraulic drive-in open circuit

2. Swashplate, fixed displacement piston-pump

3. Completely interchangeable with original

4. Flow of pump is proportional to speed and displacement

5. Rated working pressure up to 35Mpa

6. Excellent suction characteristics

7. Fit with long life and high precision bearing

8. Compact structure, light weight and low noise

9. Hydrostatic shoe gurantee long service life

10. Widely applicable for forging machinery, machine tools control, meteallurgy, engineering machinery, mining machinery and marine boat machinery etc.

11. Very competitive price

12. 1 year of warranty

-

Technical Specifications

Model

40

71

125

250

Displacement------Vgmax-----------cm3/r

40

71

125

250

Max.-speed--n=max------------------rpm-

2750

2200

1800

1500

Max.-flow

When-n=max-----------L/min

110

156

225

375

When-n=1500rpm-------L/min

60

107

186

375

Max.-power

When-n=max-----------KW

64

91

131

219

When-n=1500rpm-------KW

35

62

109

219

Max.-torque----(ΔP=35-MPa)--------Nm

223

395

696

1391

Weight------------Kg

17

35

62

122
