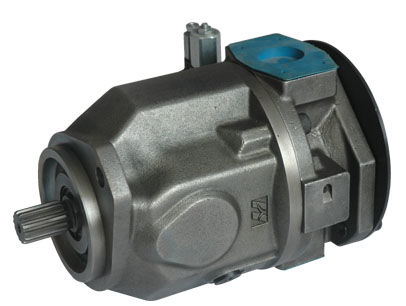

Oilfield Drilling Rig SAE Axial Hydraulic Pumps System , Perbunan Seal

Oilfield Drilling Rig SAE Axial Hydraulic Pumps System , Perbunan Seal
Oilfield Drilling Rig SAE Axial Hydraulic Pumps System , Perbunan Seal

Large Image :  Oilfield Drilling Rig SAE Axial Hydraulic Pumps System , Perbunan Seal

Product Details:
Place of Origin: China
Brand Name: Hengyuan Hydraulic
Certification: ISO9000
Model Number: A10VSO18/28/45/71/100/140
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month
Detailed Product Description
Highlight:

variable piston pump

Oilfield Drilling Rig SAE Axial Hydraulic Pumps System , Perbunan Seal

Quick details

Perbunan Seals Axial Hydraulic Pump System

Clockwise Rotation

Splined shaft

SAE 2 hole UNC inch thread

displacement is 18cc/28cc/45cc

 for Oilfield Drilling Rig



Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc


Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump



Specifications:

Specifications:







16/18

28

45

71

100

140

Displacement



Vg  max

cm3

18

28

45

71

100

140

Max speed



nmax

rpm

3300

3000

2600

2200

2000

1800

Max. flow

in  nmax

qv

L/min

59.4

84

117

156

200

252

in 1500 r/min

27

42

68

107

150

210

Max. power (Δp=280bar)



in nmax

Pmax

Kw

27.7

39

55

73

93

118

in 1500 r/min

12.6

20

32

50

70

98

Max. torque (Δp=280bar)



in Vg  max

Tmax

Nm

80.1

125

200

316

445

623

Weight



m

Kg

12

15

21

33

45

60





Features
1. Swash plate design axial variable piston pump used in open
circuit.
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
response times.
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.







Applications:

Hydraulic system. Ship Hydraulic system.

excavator, for machine tool, farming, slurry mud,Oilfield Drilling Rig





Advantage:

Good quality, Competitive price and quick delivery.

Low noise, SmallVolume
