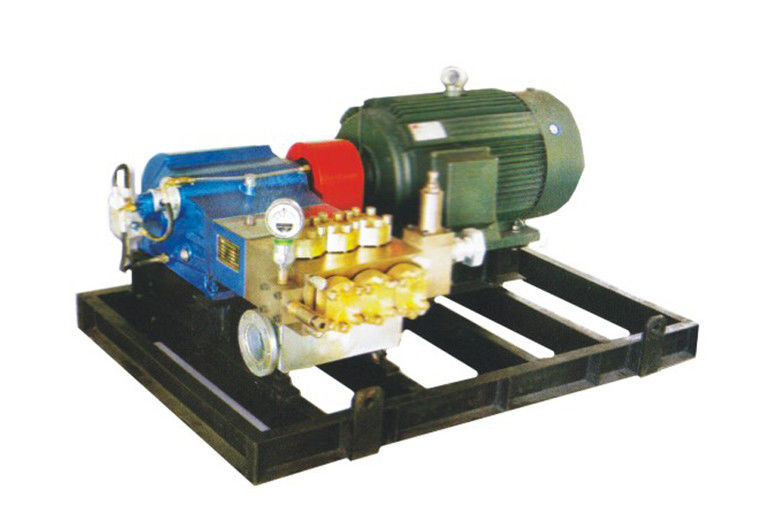

Oil field High Pressure embolic Hydraulic Piston Pump 3D3-SZ

Oil field High Pressure embolic Hydraulic Piston Pump 3D3-SZ
Oil field High Pressure embolic Hydraulic Piston Pump 3D3-SZ

Large Image :  Oil field High Pressure embolic Hydraulic Piston Pump 3D3-SZ

Product Details:
Place of Origin: CHINA
Brand Name: KOMAL
Model Number: 3D3-SZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: Wooden box or customized
Delivery Time: 15 DAYS
Payment Terms: T/T
Supply Ability: 10000 set/ month
Detailed Product Description
Highlight:

high pressure pumps

Oil field High Pressure embolic Hydraulic Piston Pump 3D3-SZ



Quick Detail:



1, Model:3D3-SZ

2, Power:110-200KW

3, Plunger Dia.:45-70mm

4, Pump Speed:366

5, Plunger stroke:120

6, RPM:1480





Description:



The high-pressure pump 3D3-S(K20000)This is the high pressure embolic pump of large flow imported from KAMAT OF gERMANY. The most power is 200KW.lt is applied for the elimination of squama in metallurgy, the seeond time oil extraction, the affusion on the third time oil extraction,injection and other
not only for transmission of clear water and emulsification liquid,but also industrial fields needing the large flow. Lt is for the transmission of the chemical liquid.













Applications:



Oil field,coal excavation,excavation equipments surface cleaning



Specification:

RPM min-1 1480 Plunger stroke mm 120
gear reduction ratio i=4.04 gear reduction ratio i=4.619
Pump Speed
min-1
366 Pump Speed min-1 320
Power KW 110 132 160 200   110 132 160 200 Power KW
Rated capacity The rated discharge pressure MPa   The rated discharge pressure MPa Rated capacity
m3/h L/min   L/min m3/h
11.7 195 28 33 40 45   31 38 46 57 173 10.38
14.4 240 22 27 33 36   25 31 37 46 213 12.78
17.7 295 19 22 27 30   21 25 30 38 258 15.48
21 350 16 19 23 25   18 21 26 32 307 18.42
24.9 415 13 16 19 21   15 18 22 27 361 21.66
28.8 480 10 13 17 19   13 15 19 24 418 25.08


Competitive advantages:





Competitive price with top quality,professional export service,provide all products as customer’s requirement,respond within shortest time
