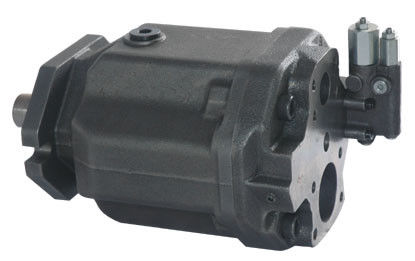

Low Noise Simple Axial Piston Variable Hydraulic Pumps For Trucks
Quick details
OEM Different Displacement Variable Hydraulic Pump
Pressure and Flow control
Perbunan seal
Splined shaft
Low noise, Small Volume
for Hydraulic system. Ship Hydraulic system
Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump
Specifications:
Specifications: |
|
|
|
16/18 |
28 |
45 |
71 |
100 |
140 |
Displacement |
|
Vg max |
cm3 |
18 |
28 |
45 |
71 |
100 |
140 |
Max speed |
|
nmax |
rpm |
3300 |
3000 |
2600 |
2200 |
2000 |
1800 |
Max. flow |
in nmax |
qv |
L/min |
59.4 |
84 |
117 |
156 |
200 |
252 |
in 1500 r/min |
27 |
42 |
68 |
107 |
150 |
210 |
|||
Max. power (Δp=280bar)
|
in nmax |
Pmax |
Kw |
27.7 |
39 |
55 |
73 |
93 |
118 |
in 1500 r/min |
12.6 |
20 |
32 |
50 |
70 |
98 |
|||
Max. torque (Δp=280bar)
|
in Vg max |
Tmax |
Nm |
80.1 |
125 |
200 |
316 |
445 |
623 |
Weight |
|
m |
Kg |
12 |
15 |
21 |
33 |
45 |
60 |
Applications:
Hydraulic system. Ship Hydraulic system.
Advantage:
Good quality, Competitive price and quick delivery.
Low noise, Small Volume
