Fixed Displacement Axial Piston Pump Troubleshooting 350 Bar Pressure

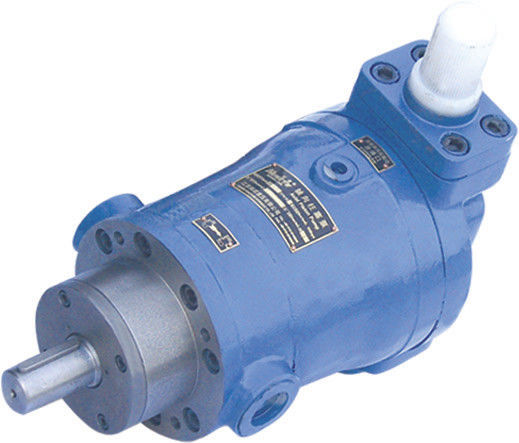

Large Image : Fixed Displacement Axial Piston Pump Troubleshooting 350 Bar Pressure

Product Details:

Place of Origin:	China
Brand Name:	Hengyuan Hydraulic
Certification:	ISO9000
Model Number:	80YCY14-1B,160YCY14-1B, 250YCY14-1B

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

Application:	Boats Hydraulic System	Direction Of Rotation:	Clockwise
Feature:	Low Noise	Power:	Hydraulic
Seals:	Perbunan, Viton	Structure:	Piston Pump
Type The Shaft:	SAE Splined, SAE Parallel With Key	Usage:	Oil
Highlight:	variable piston pump

Fixed Displacement Axial Piston Pump Troubleshooting 350 Bar Pressure

Quick details

Constant Power Control Axial Piston Pump CY Series

Rated pressure 315 bar

Peak pressure 400bar

displacement is 80 cc

Keyed shaft, single pump

It is Axial piston pump, Rated pressure 315 bar, Peak pressure 400bar, displacement is 80 cc, Constant power control, Clockwise Rotation, Perbunan seals, Keyed shaft, single pump.

Fixed Displacement Axial Piston Pump Troubleshooting 350 Bar Pressure 0

Specifications:

Dimension model	10(16)YCY	25(40)YCY	63(80)YCY	160YCY	250(400)YCY
A	φ125	φ150	φ190	φ240	φ280
B(f9)	φ75	φ100	φ120	φ150	φ180
C	27.5	32.5	42.8	59	63.9
D(h6)	φ25	φ30	φ40	φ55	φ60
E	4	4	4	4	5
F	30	45	50	100	100
G	40	52	60	106	110
H	41	54	62	110	112
I	86	104	122	180	212
J	109	134	157	230	272(277)
K	194	246	300	411	492(502)
L	71	83	108	141	170
M	M14×1.5	M14×1.5	M18×1.5	M22×1.5	M22×1.5
N	M10	M10	M12	M16	M20
P				M16	M20
Q(h9)	8	8	12	16	18
R	φ100	φ125	φ155	φ198	φ230
S	142	172	200	340	420
T	M22×1.5	M33(M42)×2	M42(M48)×2	φ55	φ64(φ66)
U				φ64	φ76
X	294	362	439	595	690(700)
Y	258	317	390	533	629(639)
Z	50	66	74	100	100
EE	100	120	140	173	210
FF	288	351	400	448	516

Parameter

Operating pressure range	Pressure at port B
~ inlet	Nominal pressure PN----------------280bar
	Peak pressure PMAX-----------------------350bar
Absolute pressure at port S	Clearance work pressure (10% cycle)---------315bar
P abs min------------------------0.8bar	Applications with intermittent operating pressures up to
P abs max------------------------30bar	215 bar at 10% duty are permitted .

Case drain pressure

Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.

Applications:

Hydraulic system. Boats Hydraulic system. Pressure Machine, Cut machine, Package Machine

Description:

Ordering Code	Detail
HA10V(S)	Model Variable pump,Swashplate design	Rated pressure 280bar	Peak pressure 350bar
O	Mode of operation Pump,Circuit
28	Displacement 18 . 28 . 45 . 71 . 100 . 140(ml/r)
DR	Two point ,direct control ,DRG--- Remote pressure control	Pressure control,Pressure and flow control	DFR1 Pressure and flow control ,Orifice in X-channel closed	Pressure . flow and torque control
/
31	Series: 31 Series
R	Direction of rotation R--- Clockwise	L--- Anti-clockwise
-
P	P-- Perbunan	Seals V-- Viton
S	Type the shaft:P--- Metric parallel with key	S-- SAE splined	K-- SAE parallel with key	U-- SAE splined,reduced dia.
C	Mounting flange:C--- SAE 2-hole	D--- SAE 4-hole	A- ISO 2-hole	B- ISO 4-hole
62	Port form:11—Back SAE, Port for SAE flage rear,fixing thread metric	service Lines 12---Both sides SAE,SAE flage on opposite side,fixing thread UNC	61--- SAE,UNC Screw thread, SAE flage rear ,fixing thread UNC	62---Both sides SAE,UNC Screw thread, SAE flage on opposite side,fixing thread UNC
NOO	Thru-form:N00- Nowhere shaft	without through drive	K**--- Thru	with through drive

Advantage:

Good quality, Competitive price and quick delivery.

Low noise, Small Volume
