Product Details:
Payment & Shipping Terms:
|
Model: | BW-160 | Color: | Blue |
---|---|---|---|
Cylinders: | Single Cylinder | Stroke(mm): | 85 |
Diameter Of Liner(mm): | φ95 | Stroke Per Minute(b/min): | 165 |
Highlight: | drilling rig mud pumps |

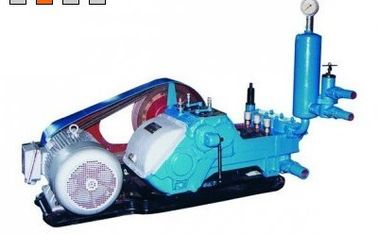

BW-160 Double Acting Hydraulic Cylinder Drilling Mud Pump For Geological Exploration
Quick Detail:
1.BW-200 mud pump diameter cylinder liner-Φ80mm and Φ65mm.
2.This mud pump needs small driving power. It has large output volume and high pressure.
3.This mud pump is a main device in geological survey.
Description:
1.BW200 mud pump is a horizontal two-cylinder reciprocating pump.
2.To meet diamond drilling, BW-200 mud pump has two kinds of cylinder liner Ф80mm and Ф65mm.The large cylinder diameter (Ф80mm) can match 600m drilling machine. The smaller cylinder (Ф65mm) can be used as associated equipment for 1000m drilling machine.
3.This piston pump has smaller volume and lighter weight than similar pumps. It is more suitable for geological prospecting.
Specifications:
Model | BW-160 |
Cylinders | Single cylinder |
Stroke(mm) | 85 |
Diameter of liner(mm) | φ95 |
Stroke per minute(b/min) | 165 |
Displacement(L/min) | 160 |
Pressure(Mpa) | 1.6 |
speed(r/min) | 951 |
Power(kw) | 15kw diesel engine |
Weight(kg) | 136 (exclude engine) |
Dimensions(L*W*H) | 1100*800*950 |
Applications:
1.It is applicable to geological exploration and engineering, exploration with the hole depth less than 1000 m.
2.It is also used in seismic blast hole drilling and bedrock drilling with engineering drilling rig in railway, water, metallurgy, construction, geology and other industries.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
