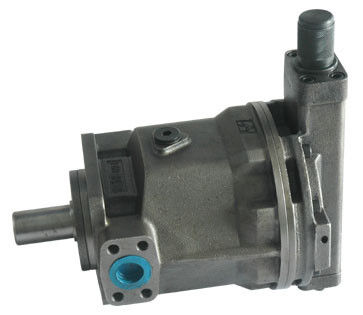

Constant Power Control Single Variable Axial Piston Pump For Pressure Machine
Quick details
Constant Power Control Axial Piston Single Pump
Rated pressure 315 bar
Peak pressure 400bar
displacement is 80 cc
Constant power control
Low noise, Small Volume
It is Axial piston pump, Rated pressure 315 bar, Peak pressure 400bar, displacement is 80 cc, Constant power control, Clockwise Rotation, Perbunan seals, Keyed shaft, single pump.
Specifications:
Features
1. Swash plate design axial variable piston pump used in open
circuit.
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
response times.
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.
Applications:
Hydraulic system. Boats Hydraulic system. Pressure Machine, Cut machine, Package Machine
Advantage:
Good quality, Competitive price and quick delivery.
Low noise, Small Volume
