Computerized Universal Testing Machine Hydraulic Metal Tensile Test

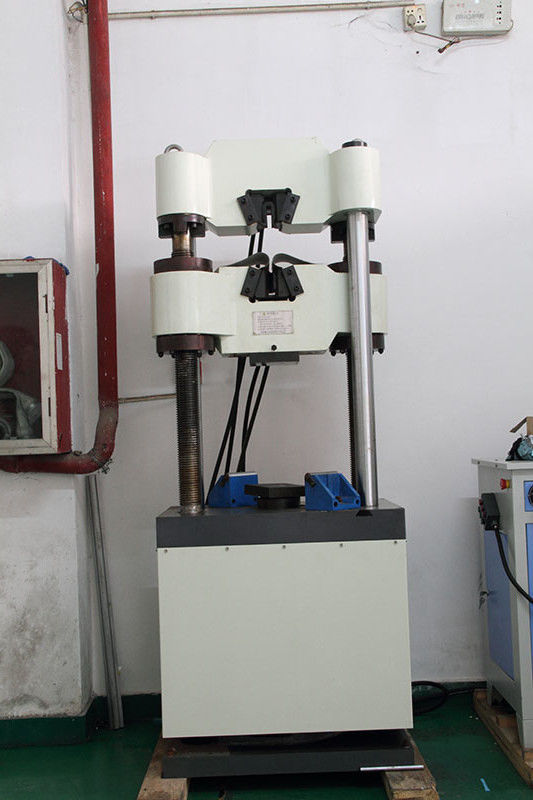

Large Image : Computerized Universal Testing Machine Hydraulic Metal Tensile Test

Product Details:

Place of Origin:	China
Brand Name:	Haida
Certification:	CE,,ISO
Model Number:	HD-B616

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Strong Wooden Case
Delivery Time:	15 Days After Order
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	100 Piece / Pieces Per Month

Contact Now

Detailed Product Description

Usage:	Tension Material Tension Strength Tester	Warranty Period:	1 Year
Max. Test Load:	300KN	Load Range:	6KN-300KN
Max. Ram Stroke:	250mm	Max. Tensile Space:	800mm(including Piston Stroke)
Max. Compression Space:	700mm(including Piston Stroke)	Display:	Computer Control And Display
Clamping Mode:	Hydraulically	Transducer:	Load Cell
Deformation Measuring:	YYU–10/50	Dimensions Of Load Frame:	990×600×2435mm
Dimension Of Controller:	1140×700×930mm	All Weight:	2800kg
Highlight:	Hydraulic Compression Testing Machine

800mm Tensile space Universal Hydraulic Metal Tensile Testing Machine with accurate load cell

Computerized Universal Testing Machine Hydraulic Metal Tensile Test 0 HD-B616-1 30T Hydraulic Universal Test Machine.pdf...
HD-B616-2 60T Hydraulic Universal Test Machine.pdf...
HD-B616-3 100T Hydraulic Universal Test Machine.pd...
HD-B616-4 200T Hydraulic Universal Test Machine.pd...

Structure introduction

Computer Control And Display Hydraulic Metal Tensile Testing Machine is also named the tensile machine, which is suitable for tensile, compression, bending and shear tests of various metallic and non-metallic materials, which can also be used for similar tests of concretes, cements and other non-metallic materials. The machine adopts underneath type cylinder, adjustable test space, four-column structure, and has the features of automatic tracking measurement of forces and displacements, maximum load peak hold, as well as loading speed display, test results can be stored and automatically printed.Our company can customize analog universal testing machines according to customer demand.

Computer Control And Display Hydraulic Metal Tensile Testing Machine is mainly used to execute the tension, compression, bending, shearing etc. test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances.

The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower crosshead and working table. The lower crosshead is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.

300KN Load Cell Computer Control Hydraulic Tensile Testing Machine adopts oil pressure transducer to measure load, use computer control & display load.

Specifications

1. it is digtial type
2. it is hydraulic
3. it can do the test of tensile, compression, bending, and so on

1. instroduction
Model WES-300B hydraulic universal testing machine UTM is designed of electro-hydraulic digital display and manual hydraulic loading system, main engine controller separately fixed. It has the characteristics of operation amenity, working steady, high accuracy and loading steady. It can implement the experimentations such as the tensile, compression, bending, cutting etc. to the metal, nonmetallic composite materials.
2. structure
The main engine consists of an adjustable support (base, screw thread pole, moveable crossbeam (lower clamp set)) and a working frame (working oil tank, piston, platform, support crossbeam (upper clamp set)). Element of the machine: high-pressure oil pump supply oil to the working oil tank, the piston moves and press board and upper crossbeam to do stretch and press test. The stretch test is done in the space between upper crossbeam and movable crossbeam. The life motor, gear, chain drive rotate at a same speed to move the crossbeam.
3. characteristics
Computer Control And Display Hydraulic Metal Tensile Testing Machine has advantages such as high precision, light weight, easy operation, clamping automatic hydraulic pressure, long use life and so on. It is applicable for detecting various indexes such as tension, compression resistance, bending etc. to metal and non-metallic material in various laboratories.

Main specifications

Model:	HD-B616
Max. Test load:	300KN
Load range:	6KN-300KN
Relative error of indicate value of load :	±1%
Max. Ram stroke:	250mm
Max. Tensile space:	800mm(including piston stroke)
Max. Compression space:	700mm(including piston stroke)
Display:	Computer control and display
Tensile grips for round specimen :	φ6-φ26mm
Tensile grips for flat specimen:	0-15mm
Distance for two columns:	500mm
Upper and lower platen size:	200x200mm
The span of bending:	450mm
Width of bending roller:	140mm
Dia. of bending roller:	30mm
Clamping mode:	Hydraulically
Transducer:	load cell
Deformation measuring:	YYU–10/50
Dimensions of load frame :	990×600×2435mm
Dimension of controller :	1140×700×930mm
All weight:	2800kg

Main standard accessories:

Hydraulic Universal Testing Machine

Upper and lower platen for compression(200x200mm)	1 set
Extensometer	1 set
Round specimen grip for tensile ( φ6-φ26mm )	1 set
Flat specimen grip for tensile ( 0-15mm )	1 set
Bending accessories	1 set
High accurate load cell	1 set
High precision photoelectric encoder Measuring the displacement	1 set
High pressure pump	1 set
Proportion Valve	1 set
Electro-hydraulic servo valve	1 set
Shearing accessories ( Optional accessories)	1 set
