Variable Axial Pump,
electric hydraulic pump

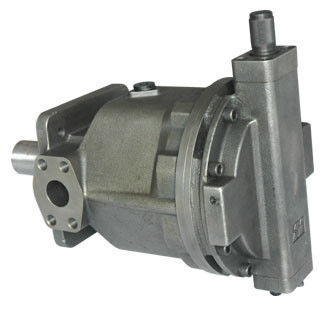

Variable Displacement Piston Pump Single Hydraulic Pump 80 cc 315 bar
Cut Machine Variable Axial Piston Pump Systems
Rated pressure 315 bar
Peak pressure 400bar
displacement is 80 cc
Keyed shaft, single pump
It is Axial piston pump, Rated pressure 315 bar, Peak pressure 400bar, displacement is 80 cc, Constant power control, Clockwise Rotation, Perbunan seals, Keyed shaft, single pump.
Hydraulic system. Boats Hydraulic system. Pressure Machine, Cut machine, Package Machine
Good quality, Competitive price and quick delivery.
Low noise, SmallVolume
1. Swash plate design axial variable piston pump used in open
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.
