Clockwise Rotation 280bar Tandem Hydraulic Piston Pump SAE splined , 18cc Displacement

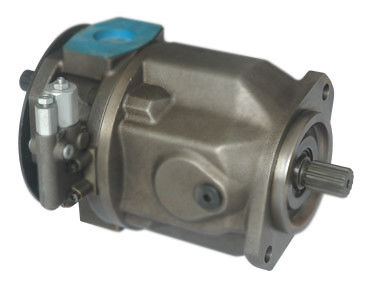

Large Image : Clockwise Rotation 280bar Tandem Hydraulic Piston Pump SAE splined , 18cc Displacement

Product Details:

Place of Origin:	China
Brand Name:	Hengyuan Hydraulic
Certification:	ISO9000
Model Number:	A10VSO18 DFR/31R-PSC62K01

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

Application:	Boats Hydraulic System	Direction Of Rotation:	Clockwise
Feature:	Low Noise	Mounting Flange:	SAE 2 Hole
Power:	Hydraulic	Pressure:	High Pressure
Seals:	Perbunan	Structure:	Piston Pump
Type The Shaft:	SAE Splined	Usage:	Oil
Highlight:	flow control pump

Clockwise Rotation 280bar Tandem Hydraulic Pump SAE splined , 18cc Displacement

Clockwise Rotation Small volume Tandem Hydraulic Pump , 18cc Displacement

Quick details

Tandem Hydraulic Pump

Clockwise Rotation

High Pressure

Splined shaft

for Hydraulic system. Ship Hydraulic system

Clockwise Rotation High Pressure Tandem Hydraulic Pump

Axial piston pump, displacement is 18cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump

Specifications:

Specifications:				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60
