hydraulic cable puller

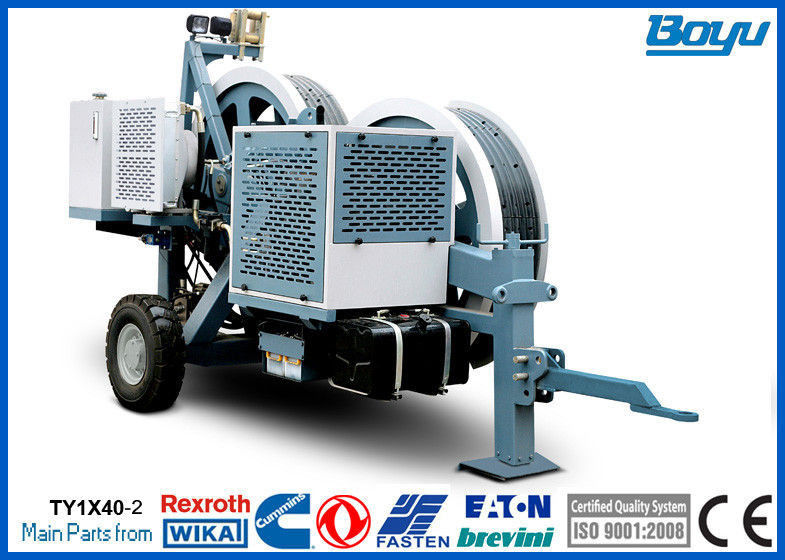

TY1x40 40kN 4T Hydraulic Cable Tensioner Stringing Equipment with German Rexroth Hydraulic Pump

Quick details

1. HydraulicTension Stringing Equipment

2. Hydraulic Tensioner

3. Max tension: 1x45kN

4. Diesel: Cummins 77kw 103hp

5. Main pump and motor and speed reducer: German Rexroth

6. Hydraulic meter: German

7. Max conductor diameter: 40mm

8. Max Optical fiber cable diameter: 21mm

9. Groove number: 5

10. Bull-wheel diameter: 1300mm

11. Engine: Cummins

 12.Boyu Brand
Description
Operated with 40kN tension machine, this machine is mainly applied in hilly and flat lands for tension stringing of 500kV conductors, and because of the great convenience brought by the reverse traction function, it is the better choice for the construction in small projects of transmission lines such as the modification works of rural and urban networks.

Performance

​

Engine

1. Diesel   77kw(103hp)
2. Cooling system   water
3. Electrical system  24V


Characteristics

• Bull-wheel diameter: 1300mm
• Max conductor diameter: 40mm
• Max Optical fiber cable diameter: 21mm
• Groove width: 68mm
• Groove number: 5
• Total weight: 2300kg
• Overall dimension (length*width*height): 3520×2000×1710mm


Main configuration

1. Engine: Cummins
2. Hydraulic pump: German Rexroth
3. Main motor: German Rexroth
4. Speed reducer: German Rexroth
5. Hydraulic meter: German


Configuration

• Hydraulic dynamometers
• Hydraulic oil cooling system
• Mechanical meter counters
• Grounding connection point


Hydraulic Transmission

• The machine can realize step less speed.
• The machine is provided with tension presetting system.


Additional Devices

1. Lighting system for the trailer
2. Hydraulic brake system for the trailer
3. Hydraulic conductor clamps for drum change operations
4. Electronic pull and speed recorder


Manufacturer Introduction
Jiangsu Province Yixing Boyu Electric Power Machinery Company is located in west side of the beautiful and fertile Taihu Lake.
Our company has a total area of 42800 square meters, having formed four series products:

• Hydraulic Tension Stringing Equipment and accessories and tools.
• Nonmetallic galvanized the production equipment (Achieved high-tech products)
• Numerical control machine
• Low voltage no power-arc furnace compensation system

Established in 1994, Yixing Boyu Electric Power Machinery Co., Ltd. is a manufacturer specialized in the research, development and production of Electric Power Machinery.
We are located in beautiful and rich city: Yixing city. We are a High-tech enterprise in Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
　　1. Main configurations of our machine are from Germany and USA
　　Engine: American Cummins
　　Main pump: German Rexroth
　　Main motor& speed reducer: German Rexroth
　　Tail bracket hoisting motor: American Eton
　　Hydraulic meter: German
　　2. Our company was founded in 1994, having 27 years rich experience in this field. Our product sells in distant markets: Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany etc. Our product is also very popular in china.
　　3. We have one year quality guarantee, if internal components go wrong within one year, we will change another for free.
　　4. We can supply the specific components to the buyers with cost price after warranty period.

History
Established in 1994, Yixing city Boyu power machinery Co., LTD
In 2001 the company passed ISO9001 certification, and obtain the AAA certificate
In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city
In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province
In 2009 reworded significant achievement in Wuxi city
In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand
In 2010 achieved the national ministry of science and technology innovation in science and technology project.
To November, 2013, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 5000 sets. Our products are sold well in Australia, Egypt, England, Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Algeria, Turkey, Peru, Colombia, Brazil, Argentina etc.

Quality Guarantee
We have one year quality guarantee, if internal components go wrong within one year, we will change another for free. We can supply the specific components to the buyers with cost price after warranty period.

TY1x40 40kN 4T Hydraulic Cable Tensioner Stringing Equipment with German Rexroth Hydraulic Pump
