Product Details:
Payment & Shipping Terms:
|
Brand: | SJ Hydraulic | Model: | A10VSO140 DFLR/31R-PSD62N00 |
---|---|---|---|
Theory: | Hydraulic | Power: | Hydraulic Oil |
Pressure: | High Pressure | Warranty: | One Year |
Application: | Excavator,dozer,loader,hydraulic System | Standard Or Non: | Standard |
Service: | Good After Sale Service | Condition: | New |
Highlight: | single piston pump |

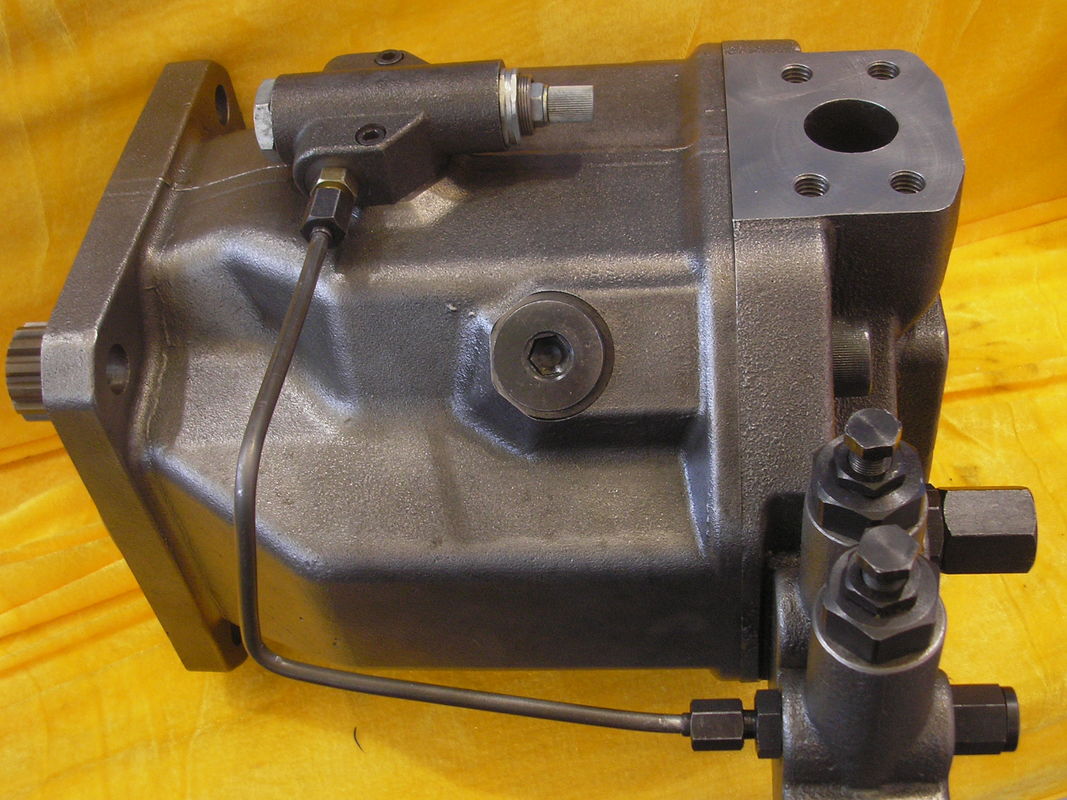

118 kW Hydraulic Piston Pumps A10VSO140 with SAE 4 Hole UNC Inch Thread
Descrition:
Axial piston pump, displacement is 140cc.
Pressure , Flow , torque control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 4 hole UNC inch thread
Side port type, single pump
Application:
Hydraulic System, Engineering machine, Concrete pump truck, Boats hydraulic system. Excavator, Loader , Metallurgy hydraulic system.
Competitive Advantage:
Good quality, Competitive price, Quick delivery, good service.
Low noise and small volume
Sizes |
|
|
|
16/18 |
28 |
45 |
71 |
100 |
140 |
Displacement |
|
Vg max |
cm3 |
18 |
28 |
45 |
71 |
100 |
140 |
Max speed |
|
nmax |
rpm |
3300 |
3000 |
2600 |
2200 |
2000 |
1800 |
Max. flow |
in nmax |
qv |
L/min |
59.4 |
84 |
117 |
156 |
200 |
252 |
in 1500 r/min |
27 |
42 |
68 |
107 |
150 |
210 |
|||
(Δp=280bar) Max. power |
in nmax |
Pmax |
Kw |
27.7 |
39 |
55 |
73 |
93 |
118 |
in 1500 r/min |
12.6 |
20 |
32 |
50 |
70 |
98 |
|||
(Δp=280bar) Max. torque |
in Vg max |
Tmax |
Nm |
80.1 |
125 |
200 |
316 |
445 |
623 |
Weight |
|
m |
Kg |
12 |
15 |
21 |
33 |
45 |
60 |
