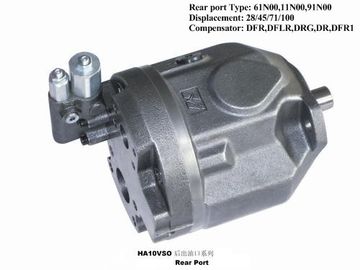

Truck Boats Hydraulic Axial Piston Pump , Single Piston Pump A10VSO28

Truck Boats Hydraulic Axial Piston Pump , Single Piston Pump A10VSO28
Truck Boats Hydraulic Axial Piston Pump , Single Piston Pump A10VSO28

Large Image :  Truck Boats Hydraulic Axial Piston Pump , Single Piston Pump A10VSO28

Product Details:
Place of Origin: China
Brand Name: Hengyuan Hydraulic
Certification: ISO9001
Model Number: A10VSO28 DFR/31R-PPA12N00
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month
Detailed Product Description
Application: Concrete Pump Truck, Boats Hydraulic System Direction Of Rotation: Clockwise
Feature: Low Noise Power: Hydraulic
Seals: Perbunan, Viton Structure: Piston Pump
Type The Shaft: SAE Splined, SAE Parallel With Key Usage: Oil
High Light:

high pressure piston pump

,

variable displacement axial piston pump



Truck Boats Hydraulic Axial Piston Pump , Single Piston Pump A10VSO28





Quick details



Boats Hydraulic System Axial Piston Hydraulic Pump

 Axial piston pump, displacement is 28cc

Clockwise Rotation

 Perbunan seal

Side port type, single pump





Parameter





Operating pressure range

Pressure at port B

~ inlet

Nominal pressure PN----------------280bar



Peak pressure PMAX-----------------------350bar

Absolute pressure at port S

Clearance work pressure (10% cycle)---------315bar

  P abs min------------------------0.8bar

Applications with intermittent operating pressures up to

  P abs max------------------------30bar

215 bar at 10% duty are permitted .



     Case drain pressure

Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.



Specifications:







Maximum permissible pressure of leakage fluid (at port L,L1):Maximum0.5 bar higher than

The inlet pressure at port S,but no higher than 2 bar absolute pressure.



Specifications







16/18

28

45

71

100

140

Displacement



Vg  max

cm3

18

28

45

71

100

140

Max speed



nmax

rpm

3300

3000

2600

2200

2000

1800

Max. flow

in  nmax

qv

L/min

59.4

84

117

156

200

252

in 1500 r/min

27

42

68

107

150

210

Max. power (Δp=280bar)



in nmax

Pmax

Kw

27.7

39

55

73

93

118

in 1500 r/min

12.6

20

32

50

70

98

Max. torque (Δp=280bar)



in Vg  max

Tmax

Nm

80.1

125

200

316

445

623

Weight



m

Kg

12

15

21

33

45

60




Axial piston pump, displacement is 28cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Side port type, single pump







 Description:





Ordering Code

Detail

HA10V(S)

Model  Variable pump,Swashplate  design

Rated pressure 280bar

Peak pressure 350bar



O

Mode of operation Pump,Circuit







28

Displacement 18 . 28 . 45 . 71 . 100 . 140(ml/r)







DR

Two point ,direct control    ,DRG---       Remote pressure control

Pressure control,Pressure and flow control

DFR1  Pressure and flow control ,Orifice in X-channel closed

Pressure . flow and torque control

/









31

Series:  31 Series







R

 Direction of rotation  R---  Clockwise

                                                                         L---  Anti-clockwise





-









P

P-- Perbunan

Seals V--  Viton





S

Type the shaft:P--- Metric parallel with key

 S-- SAE splined

   K-- SAE parallel with key

U-- SAE splined,reduced dia.

C

Mounting flange:C--- SAE 2-hole

D--- SAE 4-hole

A- ISO 2-hole

  B- ISO 4-hole

62

Port form:11—Back SAE, Port for SAE flage rear,fixing thread metric

service Lines  12---Both sides SAE,SAE flage on opposite side,fixing thread UNC

  61---  SAE,UNC Screw thread,  SAE flage rear ,fixing thread UNC

62---Both sides SAE,UNC Screw thread, SAE flage on opposite side,fixing thread UNC

NOO

Thru-form:N00- Nowhere shaft

 without through drive

  K**--- Thru

with through drive















































































Applications:



Hydraulic System, engineering machine, Concrete pump truck, Boats hydraulic system.



Advantage:



Good quality, Competitive price and quick delivery.

Low noise, Small Volume
