Product Details:
Payment & Shipping Terms:
|
| Product Name: | Split Fan Coil Unit | Application: | Wall Mounted |
|---|---|---|---|
| Air Flow: | 1020 M³/h | Power Supply: | 220V/1PH/50HZ |
| Cooling Capacity: | 2.8-5.6 KW | Water Pipe: | Red Copper |
| Case: | ABS | Copper Thickness: | 0.4 Mm |
| Controller: | Remote Controller | Color: | White |
| Aluminum Fin: | Blue Coated Coil | Cetificate: | CE Approval |
| High Light: | Residential Fan Coil Units,Compact Fan Coil Unit |
||
Professional Water Cool / Heat High Wall Fan Coil Unit Split Air Conditioning
Features:
1. Digital display panel.
2. With remote controller .
3. Huali split system has quality and reliability built-in.
4. Energy performance is similar to packaged rooftop systems with a bit more installation flexibility; it’s a
combination for reliable operation and easy service.
5. Unit as a whole is beautiful light, compact solid, ultra thin design so that the unit can be installed in
relatively small smallpox.
6. In particular,the unit adopt the large impeller slow speed of revolution fan ,and low noise motor,so run
rather quietly.
7. More function remote controller.
8. With module noble & fashion arc frame and color elegant & graceful show white, it will be inviting
wherever it is in your room.
9. All-weather application.
10. Our split system is ideal for office buildings, hotels, schools, municipal and industrial facilities.
Specifications :
|
Model HLC～ |
102G |
||
|
Air flow m3/h |
1020 |
||
|
Cooling capacity |
W |
5600 |
|
|
BTU |
19113 |
||
|
Heating capacity |
W |
8220 |
|
|
BTU |
28055 |
||
|
Water flow kg/h |
1190 |
||
|
Input Power W |
96 |
||
|
Noise level dB(A) |
45 |
||
|
Pressure of outlet |
12pA |
||
|
Power |
220V/1 50Hz |
||
|
Insulated grade |
E |
||
|
Heating discharge fin |
Vertical blinds style |
||
|
WA |
Quantity of the Motor |
1 |
|
|
WM |
Quantity of the Fan |
1 |
|
|
LA |
Water inlet pipe |
DN20 internal thread |
|
|
LM |
Water outlet pipe |
DN20 internal thread |
|
|
Condenser pipe |
DN20 internal thread |
||
We are Specialized in fan coil unit, heat pump ,water chiller. We have more than
20 years experience in HVAC area. All units with CE certificate and pass ISO2008. Our products have been exported to Europe, Middle east and South Asia etc.
Packing detail :
High quality Carton packing for our fan coil unit. But we also accpet customerized design if customer demand. Woonden crate packing is for our big machince, like heat pump or water chiller.
Installation drawing :

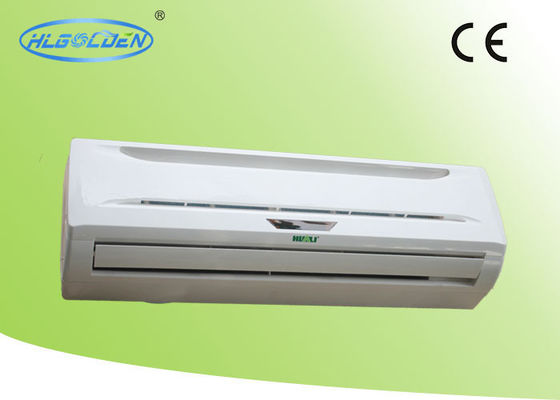

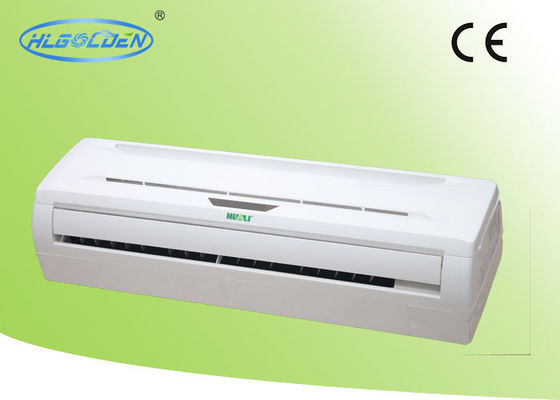

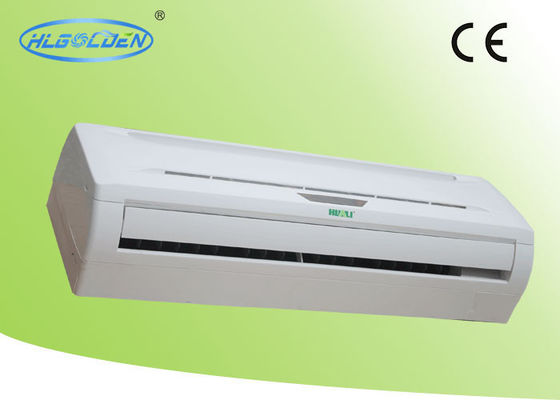

5.Wall mounted fan coil real photo:
