CNC spiral bevel Gear grinder for machining the helical and spur gears Dia .500mm
YK7150 CNC spiral bevel Gear grinder for machining the high-precision helical and spur gears Dia.500mm and module up to 10mm

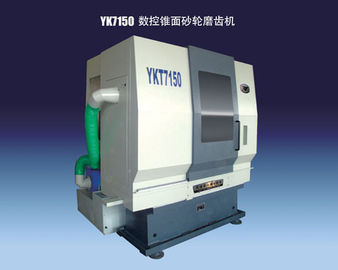

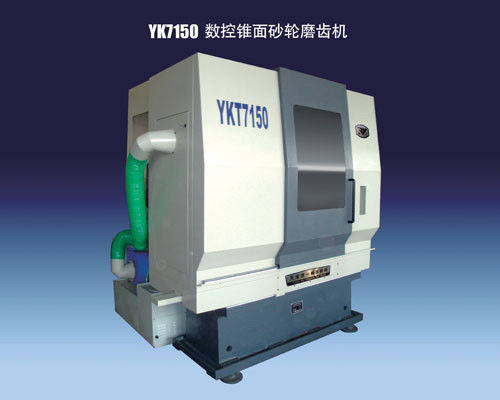

YK7150 CNC spiral bevel Gear Grinder
Features:
Ⅰ. APPLICATIONS
The YK7150 gear grinder is designed mainly for machining the high-precision helical and spur gears of diameters up to 500mm and modules up to 10mm.
This machine is especially suitable for the mass or batch production of all kinds of high-speed precision spur and helical gears of medium-size module used for motor bikes, automobile, power tools, speed-reduction motors, precision equipment, instruments and various precision gear pumps.
II. MACHINE FEATURES
The machine grinds gears with the grinding-indexing principle similar to the gear-rack generation, during which the grinding wheel (the rack) and the gear (the workpiece) generates continuously. The machine is characterized by high efficiency and high precision with the combination of the synchronous transmission.
III. MAIN EQUIPMENT
1. Brand:TMTW
2.Origin: TianJin
3. Condition: New.
4.Certificate: ISO9001:2000
Main parameter:
| Module of work | mm | 2 --10 |
| Teeth number | 12 -- 140 | |
| Diameter of work | mm | 50 --500 |
| Max. face width (spur gears) | mm | 150 |
| Helical angle | ±45° | |
| Diameter of grinding wheel | mm | 280 |
| Speed of grinding wheel | rpm | 2800 |
| Overall dimensions (LｘＷｘＨ) | mm | 2800x2400x2200 |
| Weight | t | 6.5 |
STANDARD EQUIPMENT
| CNC control system | 1 set | Flank of grinding wheel (with grinding wheel) | 1 set |
| Grinding wheel arbor | 1 set | Diamond stylus for dressing the grinding wheel | 3 pcs. |
| Cooling device | 1 set | Oil-mist exhausting device and centrifugal separator | One for each kind |
| Air conditioner for electrical cabinet | 1 set |
