| Tank Volume: | 12L | Oil Port: | G3/8" |
|---|---|---|---|
| Systerms Pressure: | 18Mpa | Solenoid Release Valve: | 12VDC 18W Coil |
| Oil Pump: | 2.1cc/r | Mounting Type: | Horizontal |
| High Light: | electric hydraulic power pack,portable hydraulic power pack |
||
G3 / 8 " Pallet Lift Power Pack 18Mpa 12VDC 18W Coil
Basic Specification
|
Motor |
DC 12V 1600W 2500RPM |
Oil Pump |
2.1cc/r |
|
Oil Port |
G3/8” |
Tank Size |
20L |
|
System Pressure |
18Mpa |
Mounting Type |
Horizontal |
Commercial Terms
|
Minimum Order Quantity: |
50pcs |
|
Price: |
USD120-150/PC |
|
Payment Terms: |
T/T |
|
Supply Ability: |
500pcs per month |
|
Delivery Time: |
25 working days after advance payment received |
|
Packaging Details: |
Packed in carton boxes ,and then wooden pallets |
Description
1). Components: This power pack is powered up and down .It components by a high pressure gear pump, a DC motor, a aluminum center manifold, valves and a hydraulic oil tank.
2). How to Work: Push “up” button to start the motor to lift the Trailer, and the solenoid release valve actives the lowering movement.
3). Applications: It is especially designed and widely used in pallet truck applications.

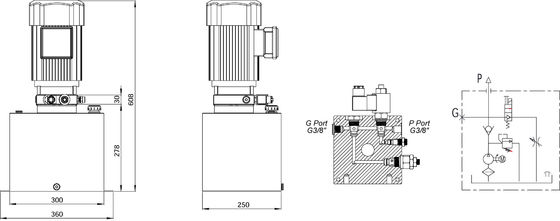

Mini Hydraulic Power Pack Schematics
Packing:
Carbon boxes and then wooden pallets
Competitive Advantage:
1. TIANDI hydraulic is one of earliest factories of Hydraulic Power Packs and units. We have a professional team for raw material purchasing to control the cost. Our works are all well trained and effective. All above these makes our price very competitive.
2. Our export department staff is very professional and effective. They are good at export processing, any problems and questions about products or processing, or paper woks, you can contact and count on them.
