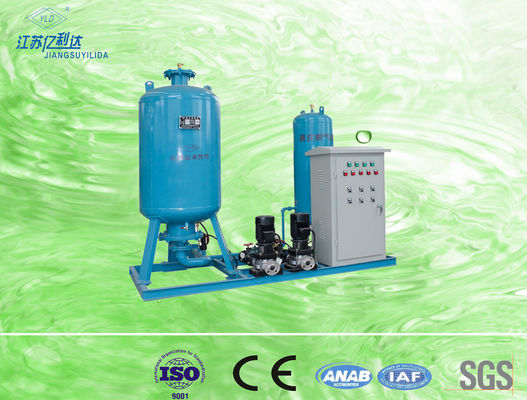

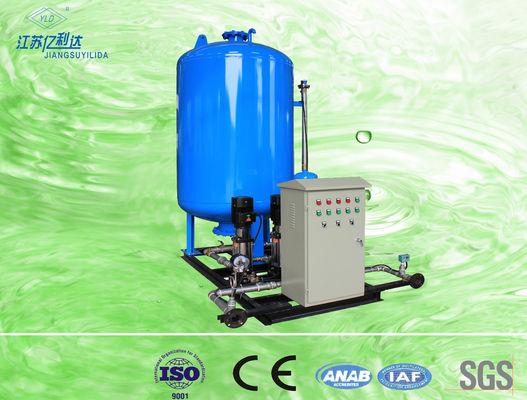

High Temperature Expansion Tank Water Supply Equipment Dia 1000mm DN 65mm

1000mm Diameter DN 65mm Inlet And Outlet Constant Pressure Complementary Water Device





Applications:

1. High temperature water of continuous heating system.
2. Hot water station, continuous heating system for civil use.
3. High temperature hot water in circulation system.
4. Fan coil pipe in cooling water system.


Ship&packing:


NOTES OF INSTALLATIONS:

• Pipe should not press the pump so as to prevent the pump from deformation.
• No need for pump correction.
• Anchor bolts must be tightened, in order to avoid impact on pump performance because of vibration.
• Pump should be carefully examined in case pump impeller and body damage due to hard stuff like rocks, sand ect.
• You had better fix up a regulating valve in outlet and inlet pipe respectively, and install pressure gauge on the pump outlet, which can ensure stable performance with rated head and flow and last it`s service life.
• Should be equipped with bottom valve, keep less bend near the inlet pipeline. Water and gas leakage should attract your attentions.
• It should be equipped with filter in front of inlet so as to avoid blocking, whose sectional area is 3 or 4 times of inlet’s.
• Shaft and impeller should be shifted without friction sound or stuck otherwise the pump should be disassembled to examine.
• The pump inlet and outlet flange is designed according to 1.6Mpa standard, such spare parts need your attention on specification when you install.

FAQ:

01. What is the regulate volume(m3) or total volume you required for this equipment?
02. What is the head of the water pump?

Specifications:
