| High Light: | Stainless Steel Centrifugal Pump,Water Injection Pump |
||
|---|---|---|---|

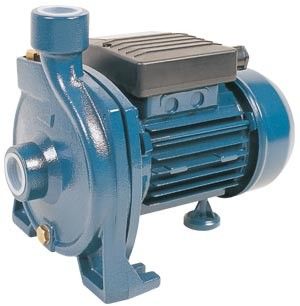

CPM 220 Volt Industrial Stainless Steel Centrifugal Pump 10 bar Power saving
The CPM series pumps are high-efficient, power-saving and compact in structure, convenient to operate and maintain . The hydraulic characteristic is with high head and small capacity. They are suitable for both domestic and industrial applications to convey clean water and non-aggressive chemical liquid, also can be applied to supply the water for
garden, hotel, villas and agricultural irrigation, etc.
Pumps should be installed in a covered area, protected against the weather.
Operating Limitations
Max ambient temperature up to 40℃
Max fluid temperature up to 80℃
Max pressure up to 10 bar
Construction Features
Pump Body: cast iron
Motor Housing: aluminum
Shaft:45#steel /stainless steel
Impeller: brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44 /IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon

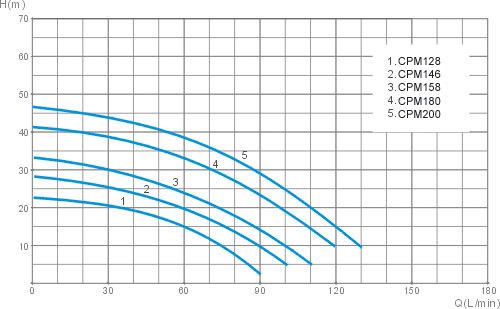

Specifications :
| MODEL | INPUT POWER | VOLTAGE | MAX.FLOW | MAX.HEAD | INLET/ OUTLET |
GW | PACKING DIMENSION |
| CPM128 | 0.37kw | 220V/50HZ | 90L/MIN | 22m | 1"*1" | 9.3kg | 275mm*195mm*245mm |
| CPM146 | 0.55KW | 220V/50HZ | 100L/MIN | 28M | 1"*1" | 12.3KG | 310mm*195mm*250mm |
| CPM158 | 0.75KW | 220V/50HZ | 110L/MIN | 34M | 1"*1" | 14.3KG | 320mm*215mm*275mm |
| CPM180 | 1.1KW | 220V/50HZ | 120L/MIN | 42M | 1"*1" | 21.8KG | 360mm*235mm*300mm |
| CPM200 | 1.5KW | 220V/50HZ | 130L/MIN | 47M | 1"*1" | 24KG | 365mm*255mm*320mm |
