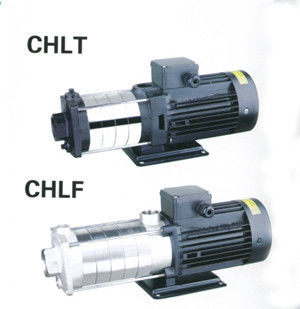

AC Electric High Pressure multistage centrifugal pump CHLF2 / CHLT2
Quick Detail:
Description:
Pump CHLF/CHLT series is segmental multistage stainless steel pump; the liquid part is made of SUS304,.
Under processing of advanced welding equipment, heat treatment, the stress caused by end-cut plate in
tension and press forming is eliminated to make in high strength, no deformation, long life, safe and reliable
usage; Applied mechanical seal type ensure watertight in long-time continuous operation. The material of
frame is aluminum; it is under
low-noise and less-vibration and durability. Insulation class F, protection IPX55, continuous duty; Single-phase
with thermal protector from T1 to
ensure safety and convenience.
Applications:
It`s widely used to convey industrial liquid: such as mineral water soft water pure water light oil, circulation
and boosting for other weak chemical liquid.
1. Water treatment
2. Industrial cleaner and dishwasher
3. Pressure boosting for the water on processing line,garden sprinkler
4. Heating and cooling for the water on industrial process-ing line
5. Air-conditioning system
6. Air freshening, moistening equipment (soft water)
7. Water supply and boosting(drinking water weak chlorine water)
8. Fertilization/metering system

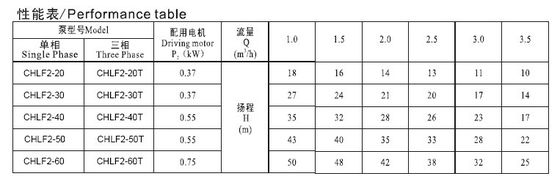

Specifications :
|
Type |
Voltage (V) |
Rated Power (W) |
Maximum Flow (m³/h) |
Maximum Head (m) |
|
CHLF2/CHLLT2 |
220 |
370 |
3.5 |
18 |
Competitive advantages:
1. More higher flow and pressure,
2. Low noise and low vibration.
3. Compact and reasonable structure
4. Mechanical seal to be VITON,
5. High efficiency and little energy consumption
