Product Details:
Payment & Shipping Terms:
|
| High Light: | impeller for water pump,high speed impeller |
||
|---|---|---|---|

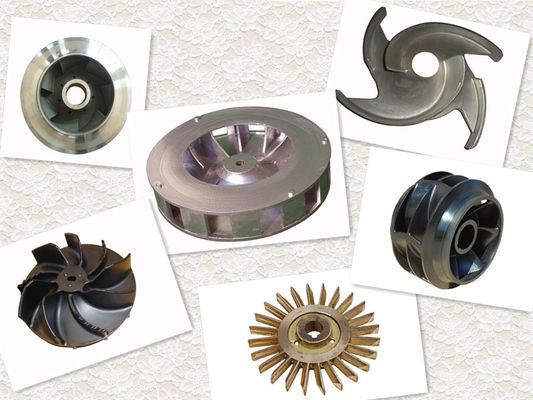

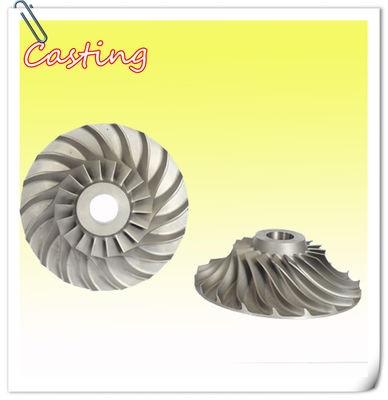

Investment casting marine water pump impellers for reflow oven
| Packaging Detail: | Marine Pump Impeller Parts:Wooden Case/Bulk/OEM As Request |
| Delivery Detail: | 20-30 Days Or According To Your Requirement |
OEM Service&CNC Machining
Various Structure for Pump Impeller Parts
Strict Inspection&Control
ISO9001& ISO14001
Marine Pump Impeller Parts
Company profile
Our Foundry has been making brass,iron castings for tens of years for many famous companies. With production and trade integrated.specializes in developing industrial centrifugal fan of various specifications, centrifugal impeller and diverse specifical motor wind distribution wheel(such as professional products of packing machine and reflow machine).
Great performance Pump Impeller Parts :
1. Material is gray iron, stainless steel, aluminum,brass
2. Process is investment casting
3. Surface treatment is available
4. Well equipped facilities and experienced technicians will ensure its great quality and
accurate inspection
5. Big discounts is available if quantity is large.
GRAY CAST IRON
| Meehante metal spec. | GE 200 | GD 250 | GB 300 |
| Brinnel hardness range | 170-210 | 180-220 | 190-230 |
| Min tensile strength | 25,000 psi | 35,00 psi | 45,000 psi |
| 20 Kgf/mm2 | 25 Kgf/mm2 | 30 Kgf/mm2 | |
| American-ASTM 48-83 | GRAY 25 | GRAY 35 | GRAY 45 |
| Germany-DIN 1691 | GG 20 | GG 25 | GG 30 |
| Japan-JIS G 550 | FC 200 | FC 250 | FC 300 |
DUCTILE CAST IRON
| Meehante metal spec. | SF 400 | SFP 450 | SFP 600 | SP 700 |
| Brinnel hardness range | 170 Max | 156-217 | 195-217 | 241-302 |
| Elongation % | 18% | 12% | 6% | 3% |
| Min tensile strength | 60,000 psi | 65,000 psi | 80,000 psi | 100,000 |
| 40 Kgf/mm2 | 45 Kgf/mm2 | 60 Kgf/mm2 | 70Kgf/mm2 | |
| Min yield strength | 32Kgf/mm2 | 33Kgf/mm2 | 39kgf/mm2 | 46Kgf/mm2 |
| 40,000psi | 45,000psi | 55,000psi | 70,000psi | |
| American-ASTM 536-84 | 60-40-18 | 65-45-12 | 80-55-06 | 100-70-03 |
| Germany-DIN 1693 | GGG 40 | GGG 45 | GGG 60 | GGG 70 |
| Japan-JIS G 5502 | FCD 400 | FCD 450 | FC 600 |
FCD 70 |
Pump Impeller Parts service process:
1. We are good at combining different processing methods and offering complete solution based on customers'requirement.
2. Our own experienced engineers follow the whole process to be sure of satisfied products.
3. Well educated International sales staffs keep rapid and effective communication.
4. In time delivery and quality assurance.
Application of Pump Impeller Parts :
Impeller is suitable for a variety of ovens, electronic equipment, reflow oven, packaging equipment, machinery and other industries.
| 1.Material | Stainless steel, Aluminum, Cast iron ,copper alloy |
| 2.Process | sand casting, gravity casting, low-pressure die casting, high-pressure die casting. |
| 3.Certificate | ISO9001& ISO14001, GL&ABS&DNV &BV |
| 4.Standard | ASTM |
| 5.Specification drawings | Pro/E, Auto CAD, CAXA UG, CAD/CAM/CAE. |
| 6.Precision machining | CNC, milling machine, drilling machine, numerical lathe, all types of lathe. |
| 7.Surface finish process | polishing, sand blasting, heat treatment, painting, powder coating, anodizing, electroplating, mirror polishing. |
| 8.Service | OEM service available |
| 9.Product | casting copper alloy pump and valve parts (unit weight ≥1kg) |
| 10.Advantage |
Good quality and strict delivery time. |
