Small Volume Low Noise Axial Hydraulic Piston Pump For Machine Tool OEM

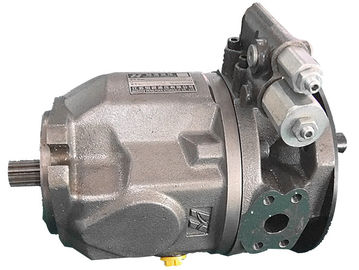

Large Image : Small Volume Low Noise Axial Hydraulic Piston Pump For Machine Tool OEM

Product Details:

Place of Origin:	China
Brand Name:	Hengyuan Hydraulic
Certification:	ISO9000
Model Number:	A10VSO18/28/45/71/100/140

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton
Delivery Time:	15days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

High Light:

variable piston pump

axial piston pump

Variable Displacement Axial Piston Hydraulic Pump For Machine Tool OEM

Quick details

Axial Hydraulic Pump

Low noise, Small Volume

Clockwise Rotation

SAE 2 hole UNC inch thread

OEM Axial Hydraulic Piston Pump

Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc

.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump

Specifications:

Specifications:				16/18	28	45	71	100	140
Displacement		V_{g max}	cm³	18	28	45	71	100	140
Max speed		n_max	rpm	3300	3000	2600	2200	2000	1800
Max. flow	in n_max	q_v	L/min	59.4	84	117	156	200	252
Max. flow	in 1500 r/min	q_v	L/min	27	42	68	107	150	210
Max. power (Δp=280bar)	in n_max	P_max	Kw	27.7	39	55	73	93	118
Max. power (Δp=280bar)	in 1500 r/min	P_max	Kw	12.6	20	32	50	70	98
Max. torque (Δp=280bar)	in V_{g max}	Tmax	Nm	80.1	125	200	316	445	623
Weight		m	Kg	12	15	21	33	45	60

Applications:

Hydraulic system. Ship Hydraulic system.

for excavator, machine tool, farming, slurry mud,Oilfield Drilling Rig

suitablefor hydraulic power transmission in Metal Forming Machine Tool, Construction

Machinery, PlasticMachinery and the field in Mining, Metallurgy, Shipbuilding,

Architectural machine,Water Product andConservancy so on.

Features
1. Swash plate design axial variable piston pump used in open
circuit.
2. Continuous working pressure can reach 280bar,the highest
instantaneous working pressure can reach 350bar.
3. The flow is directly proportional to the drive rotate speed and
the displacement, and can make stepless variable come true by
adjusting the obliquity of the swash plate.
4. Wide range of controls such as DR,DFR,DFLR etc. Short
response times.
5. Low noise level, high efficiency, high reliability and long service life.
6. Small volume, High power density.
7. Excellent oil absorbency.
8. Axial and radial loading of drive shaft possible.
9. SAE and ISO mounting flange.
10. Thru drive option for multi- circuit system.
